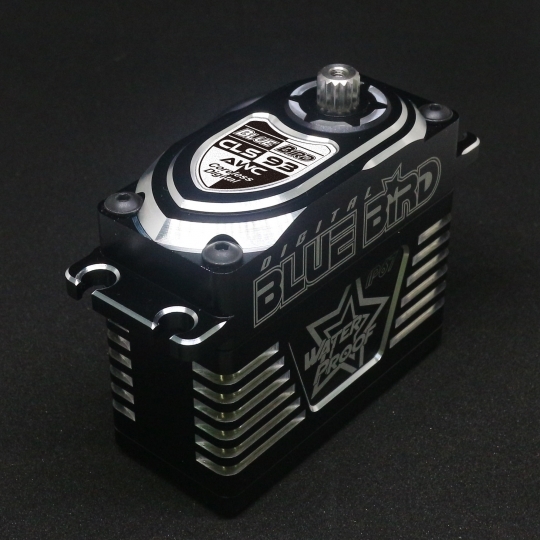

CLS-93AWC Water Proof, ULTRA MEGA TORQUE 93.3kg/1295.9oz 0.13sec 8.4V
CLS-93AWC Water Proof, ULTRA MEGA TORQUE 93.3kg/1295.9oz 0.13sec 8.4V

Alternative Views:


List Price: CAD$239.99
Price: CAD$219.98
Savings: CAD$20.01

Stock Status:Contact us for availability


Item Number: CLS93AWC
Qty:

Description


CLS-93AWC Water Proof, ULTRA MEGA TORQUE, Coreless+Servo Arm (New generation Extra Large Servo)--Blue Bird's most powerful 1/4-1/5 scale Monster Truck/Crawler/Large Boat servo at over 1250oz!!

Water Proof IP67 (Ingress Protection Rating, 6=Dust Tight, 7=Immersion up to 1Mfor 30 min)

Features:

★Soft Start Protection
★Over Voltage Protection
★Low Voltage Protection
★Locked Rotor Protection
★Temperature and Loss of signal Protection

APPLICATION / SUITABLE

Perfect for Giant Scale 1/4 & 1/5、Buggy (Off-road), GT (On-Road), Monster Truck, Rock Crawler and Large Boats

ELECTRICAL SPECIFICATION (FUNCTION OF THE PERFORMANCE)

Torque At 6.0V72.2 kg-cm / 1002.8 oz-in
Torque At 7.4V87.5 kg-cm / 1215.4 oz-in
Torque At 8.4V93.3 kg-cm / 1295.9 oz-in
Speed At 6.0V0.19 sec / 60°
Speed At 7.4V0.15 sec / 60°
Speed At 8.4V0.13 sec / 60°

PROTECTION MECHANISM

Soft Start ProtectionSoft start to neutral position.
Over Voltage ProtectionOver 9.0V drive the protection mode and 8.4V return to normal mode.
Low Voltage ProtectionLower than 4.0V, drive the protection mode and 4.5V return to normal mode.
Locked Rotor ProtectionStall in 5 sec, output torque goes down.
Temperature and Loss Signal Protection Overheat 85 degree C, drive the protection mode and down 75 degree C
return to normal mode.

POWER SUPPLY

Operating Voltage Range4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or 2S Li-Poly / 2S Li-Fe)

CONTROL SPECIFICATION

Control System32-Bits CPU Digital Controller / AD 12-Bits ( 4096 Steps )
Dead Band Width0.002ms ( 2us )

MECHANICAL SPECIFICATIONS

Ball BearingDual, Stronger Steel Bearings 1 piece oil sealed
GearStainless Steel Output Gear with All Steel Gears
Cable300mm(~12") Black Cased Cable
MotorHigh Efficiency Coreless Motor
Horn / Gear Spline15 Teeth ( Universal Type )

PHYSICAL SPECIFICATIONS

Dimension (mm)65.8 x 30 x 56.5 mm / 2.59 x 1.18 x 2.22 in
Weight (gram)245 ± 1 grams / 8.64 oz


Includes Servo and Aluminum Servo Arm
