Eachine Blade 185 FPV Racing Drone w/GPS
Eachine Blade 185 FPV Racing Drone w/GPS

Alternative Views:


Price: CAD$524.99

Stock Status:Contact us for availability


Item Number: EACHINE185
Qty:

Description


Features:

  • Motor Lock/Unlock: This feature lets you lock and unlock the motors, this feature helps you keep all your fingers.

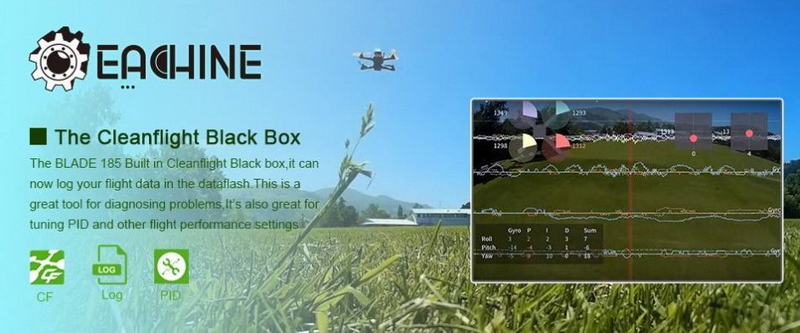

  • Black Box: Record all of your flight data so you can go back and look at it later.
  • Naze32 Flight Controller: This drone uses a flight controller that is very popular in other quadcopters.
  • OSD Display: Display all information about quadcopter including altitude, speed, battery and more.
  • FPV Video: Stream FPV video over 5.8GHz to your video receiver (not included)
  • Altitude Hold: Using the built in barometer you can make your quadcopter hover at the same height.

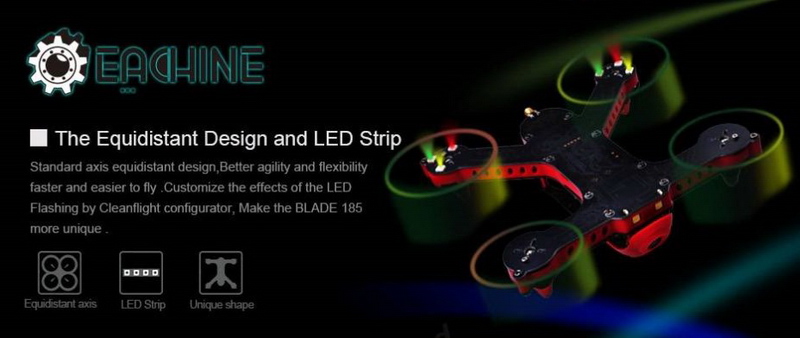

  • Carbon Fiber Frame: High strength lightweight carbon fiber frame protects you from crashes.
  • GPS: Use GPS functions with your quadcopter.


Flight controller
Naze32 Rev6 Full function 32bit
CPU: STM32F103CBT6
Frequency: 72M
Accelerometer: MPU6500
Barometer: MS5611
Magnetometer: HMC5983


Battery
Capacity(mAh):1300
Cells (s): 3S
Discharge (c): 25
Weight (g): 111
Max Charge Rate (C): 2
Length(mm): 80
Width(mm): 30
Height(mm): 24


Motor
Eachine B1806 KV2700
Configu-ration: 12N14P
Stator Diamter: 18mm
Stator Length: 6mm
Shaft Diameter: 2mm
Motor Dimension(Dia.*Len): Φ23*30.1mm
Weight(g): 20
Idle current(10)@10V(A): 0.35
No. of Cells(Li-po): 2-3S
Max Continuous Power(W)180S: 135
Internal Resistance: 118mΩ
Max Current(180S): 12A
Max.Effciency Current: (2-7A)>83%

ESC
Eachine B12A brushless esc
Continuous current: 12A
Burst current: 15A(10s)
Li-xx Battery: 2s-4
