HOBBYWING EZRUN MAX4 Combo - HWA38020369
Alternative Views:
Price:
CAD$
1,049.99
Stock Status
:
Contact us for availability
Item Number:
HWI38020369
Qty:
Email me when Back-In-Stock
Description
What's in the box?
(1) Ezrun MAX4 ESC
(1) EzRun 70125 560KV Motor
(1) Double side tape
(2) Heat shrink tube
User's manual
A HOBBYWING decal
Bottomline:
The ESC uses a special process
, coupled with an innovative waterproof design, to increase waterproofing and dust-proofing performance in different climates. It is easy to deal with the harsh conditions containing sediment, ice, snow, and water accumulation.
Built-in ultra-powerful
switch mode BEC with a continuous current of 10A, an instant 25A, and support for 6V/7.4V/8.4V switching, supporting a wide range of powerful and high-voltage servos.
Equipped with the most advanced and safe electronic switches.
The traditional mechanical switch protects and prevents dust, humid and other harsh environments, contact rust, and violent impact (such as flying slope landing)
caused by the automatic closure of mechanical switches and other issues.
Built-in fire-proof circuitry
to protect the battery plug, while effectively avoiding damage to the case from electrical sparks (fingers).
Multiple protection functions
: battery low voltage protection, ESC and motor overheat protection, signal loss protection, and current protection.
Support LED program card, LCD program box, OTA programmer
(Note: optional) to set the parameters of the ESC.
Real-time data recording function
to view various running data on the HW LINK app using the OTA BT module.
Manual Download
User's Manual
-MAX4 ESC
User's Manual
-70125 Motor
Related products..

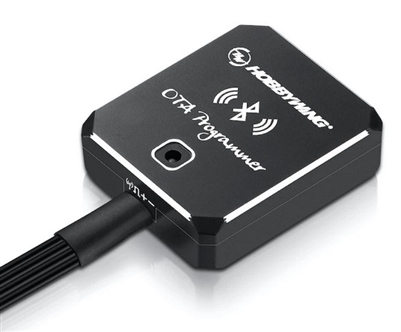

Bluetooth OTA Programmer

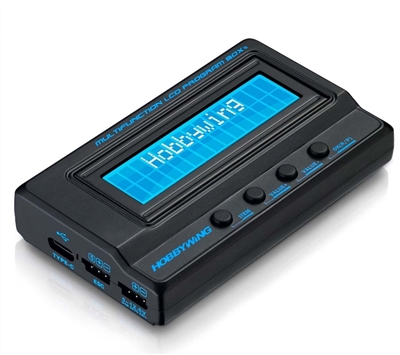

Multifunction LCD Professional Program Box (G2)
Specification Motor EZRUN MAX Motor
70125SL-560KV
PN
30402850
Pole
4
KV(No-load)
560KV
R. (Ω)
0.0050
Current No-load(A)
3.6
Motor D.&L(mm)
70mm (2.760in) / 125mm (4.921in)
Shaft D.&L of the projecting part(mm)
8mm (0.315in) / 30mm (1.181in)
LiPo(S)
8-12S Lipo
W (g)
1995g
Applicable
1/4th, 1/5th Heavy-duty Off-road, Truck.
Best match with
MAX 4 HV ESC
EZRUN MAX4 ESC
MAX 4 (HV)
Scale Vehicles
1/4 - 1/5th
Cont./Peak
Current
300A/2000A
Motor Mode
Sensored and sensorless brushless motor
Input
6-12S Lipo
Motor Limit
With 12S Lipo: KV≤600 70125 size motor
BEC Output
6V / 7.4V / 8.4V adjustable, continuous current 10A (Switch-mode)
Programming
Port
Share with Fan interface
Switch Mode
Electronic Switch
Capacitor
protection
Yes
Waterproof
Yes
Size (L.W.H)
mm
125 x 85 x 61.7mm
Weight (g)
775.4g
