O.S. 30600 FS-62V Four Stroke Glow Engine w/Muffler
O.S. 30600 FS-62V Four Stroke Glow Engine w/Muffler

Alternative Views:


List Price: CAD$418.50
Price: CAD$399.98
Savings: CAD$18.53

Stock Status:Contact us for availability


Item Number: OSM30600
Qty:

Description

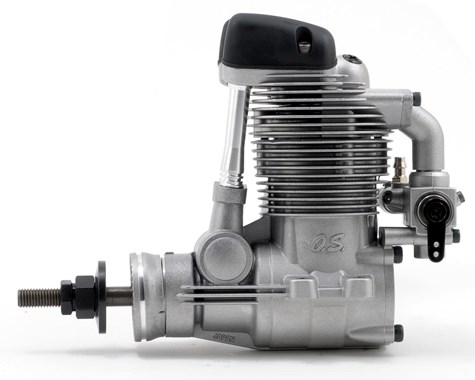

This is the O.S. FS-62V Four Stroke Glow Engine. The new O.S. FS-62V has the multi-cylinder look, deeper bass sound and 4-stroke power that will perfectly complement any airplane. Its classic looks are a flashback to aviation’s Golden Age, and its power is state-of-the-art. Whether it’s mounted inside the cowl of a scale model or installed on a sport model with the engine exposed, the FS-62V delivers new levels of performance.

Features:
  • Bold, new head design with angled valve layout and individual valve covers
  • Machined aluminum pushrod guides
  • New Jet Stream Silencer has a unique outline, attractive fin shape, and produces an authentic, low amplitude sound that’s ideal for scale planes
  • Steady power at all times due to the optimal balance between high combustion efficiency and effective cooling
  • Quick and powerful response
  • Easy to adjust
  • Mounts in the same bolt pattern as the O.S. 56FS-a
  • Carburetor is reversible (180°) and mounted on the center line, which makes it easy to install in a wide variety of models
Specifications:
Displacement:
0.617 cu in (10.11 cc)
Bore: 0.98 in (25.0 mm)
Stroke: 0.81 in (20.6 mm)
Practical RPM: 2400 – 11,000
Power Output: 1.12 hp/11,000 rpm
Engine Weight: 15.6 oz (442 g)
Muffler Weight: 1.55 oz (44 g)

Includes:
  • (1) F glow plug
  • (1) F-4050 Jet Stream Silencer & Header
  • (2) Lock nuts
[PDF]

FS-62V Manual - O.S. Engines
