Description

To view Assembly Instructions and download the manual CLICK HERE

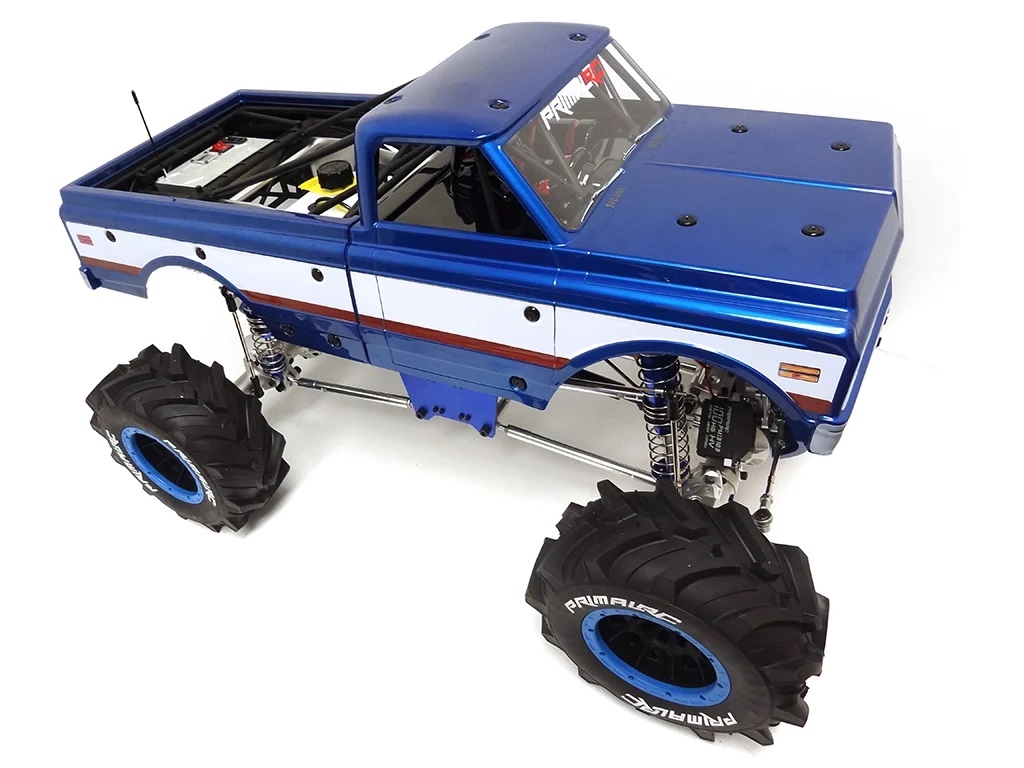

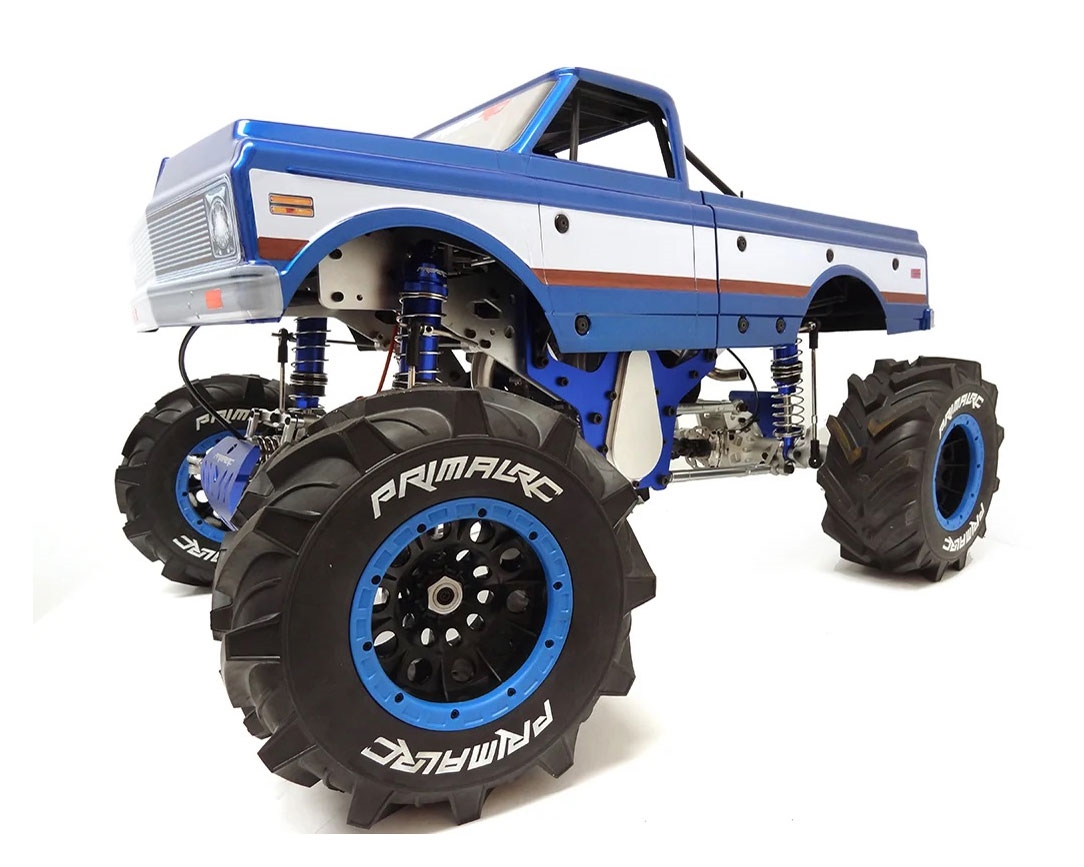

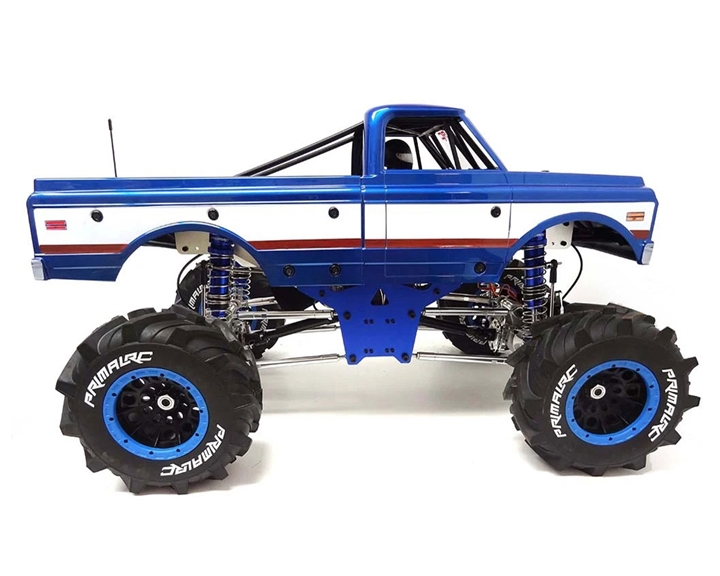

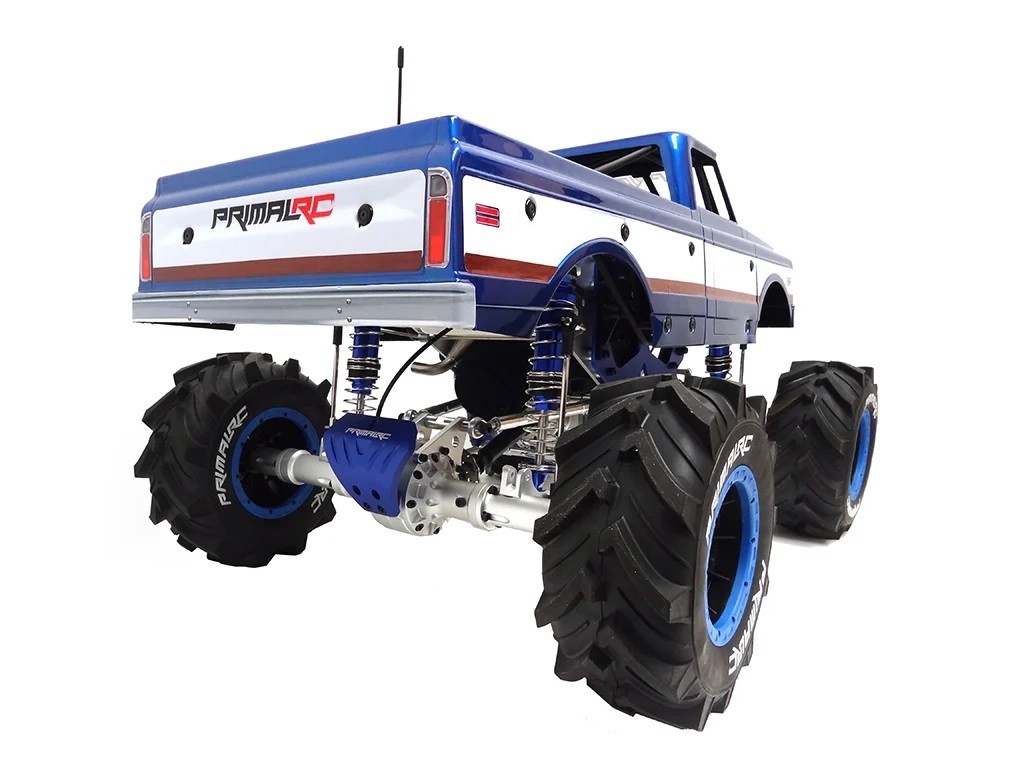

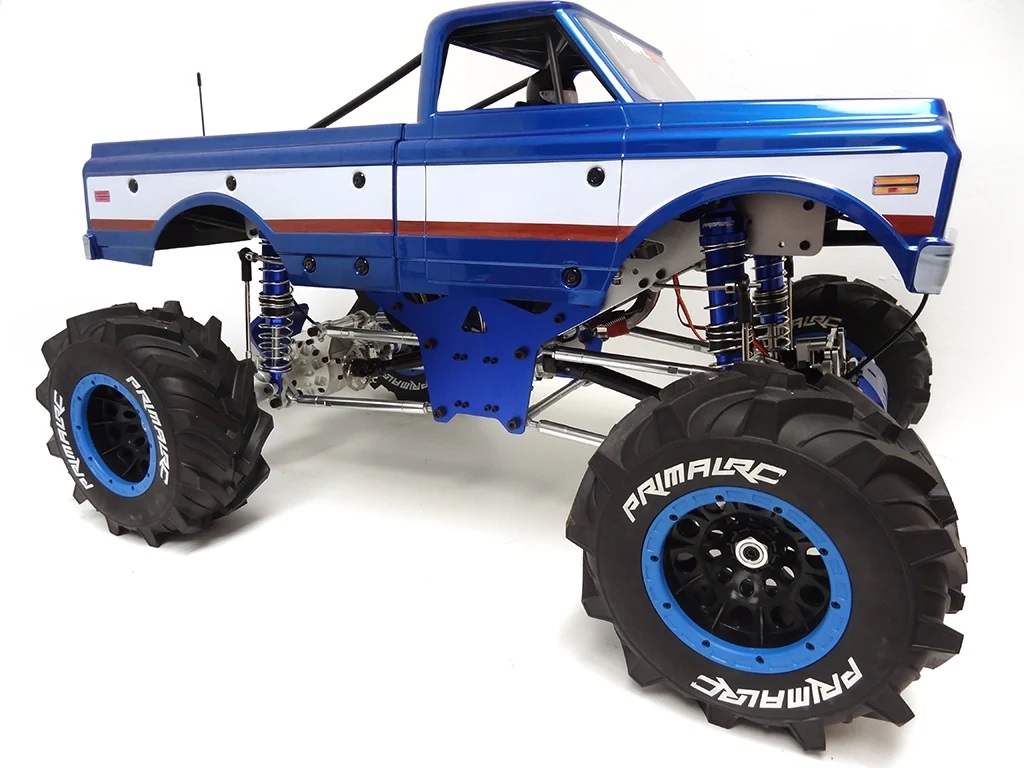

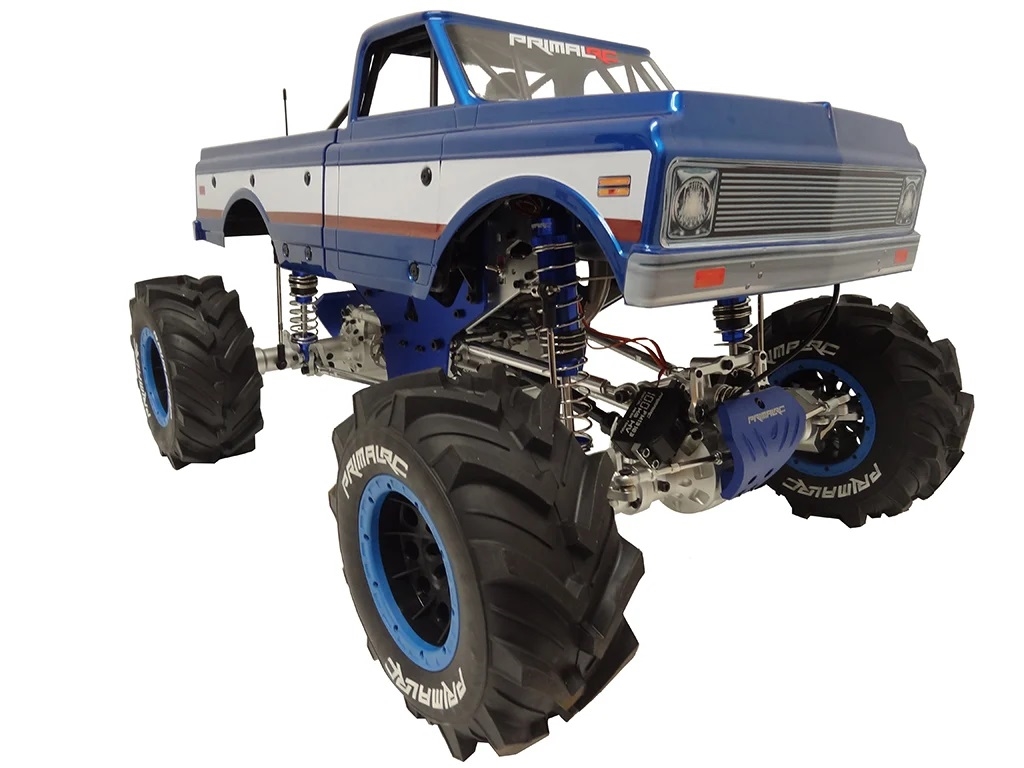

We’re Happy to offer you our latest creation from Primal RC the New 1/5 Scale Ready to Run 4X4 Mega Monster Truck! It’s a real Gas powered 4 wheel drive solid axle Monster Truck based on our Raminator Monster Truck. This New MEGA Truck Features a new Classic Style Pickup Truck Body with a re-designed roll cage and New MEGA Mud Tires for a New Aggressive Look. These New Tires let the overall track width of this truck be 4.5 inches smaller then the Raminator’s Monster Truck Tires so it’s a little easier to fit places and drive around. Mechanically everything else is the same between both new V3 Trucks

Weighing in at 75 pounds this one is not for the faint of heart. We tried our best to make this perform as close to possible to scale as a real life Monster truck. We built it very strong and wanted to make something truly special for the world of RC. You can set this up for great fast monster truck performance or gear it low for awesome rock crawling. Five different gear ratio combinations are included! This truck is just about unstoppable but when you do get yourself in a jam just hit the reverse switch from the transmitter to back out of just about any situation. I hope you love this as much as I do!

THIS TRUCK IS ONLY RECOMMENDED FOR ADVANCED RC ENTHUSIASTS!!

These new V3 Trucks will now come with all the upgrades that the V2 Truck have plus the following:

• Upgraded 100KG Steering Servos
• Upgraded Large Capacity MEGA Shocks with huge 10mm shock shafts

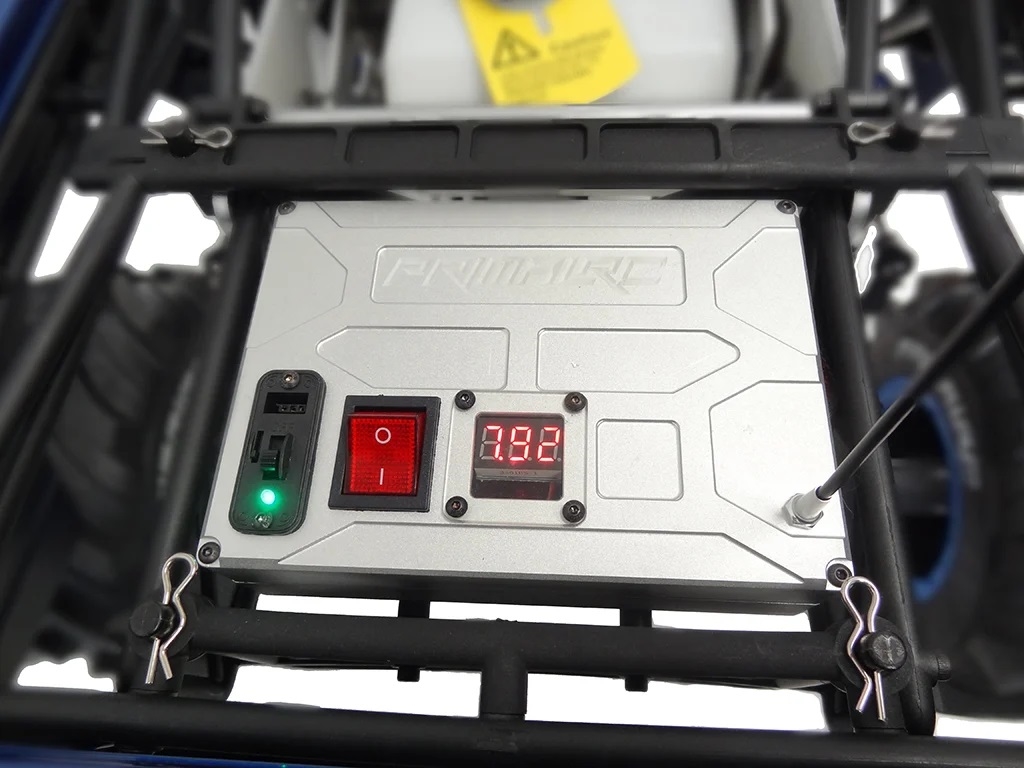

• Upgraded Aluminum Enclosed Battery, Receiver and Re Kill Switch Box with Voltage Meter
• Upgraded redesigned reverse gear slider for easy reverse engagement
• Upgraded Hardware with stronger cap head bolts

Due to its size and weight, we only recommend this for advanced RC Drivers! Some assembly will be required due to the size of this. (Shipped in 2 boxes)

Standard Features

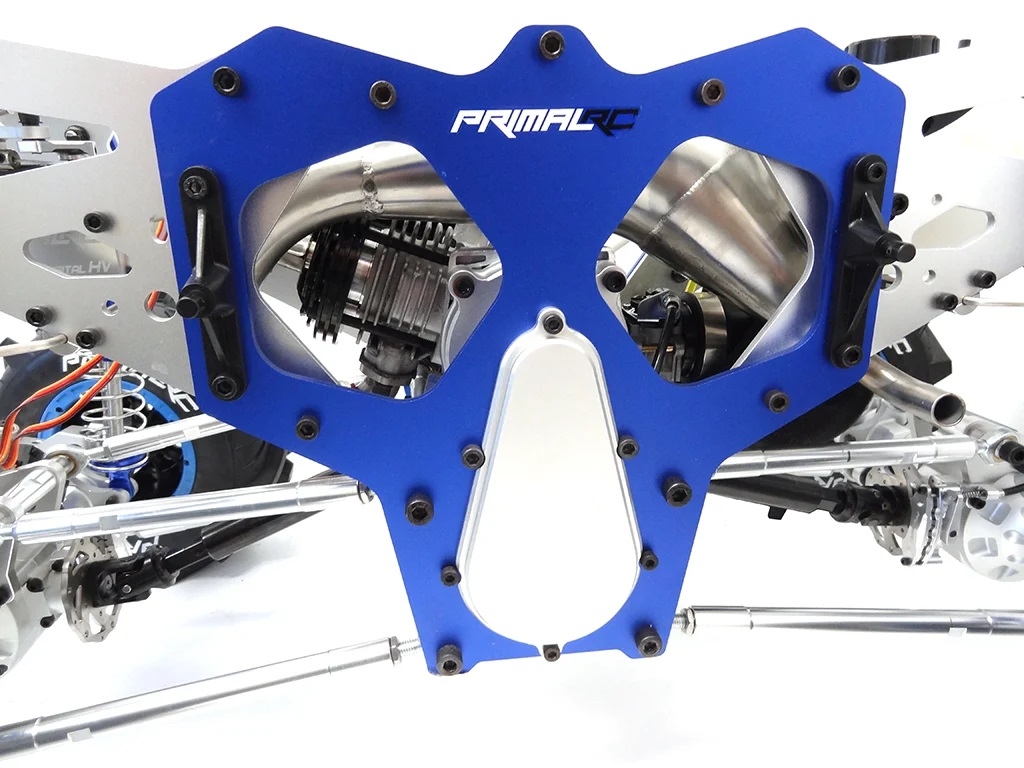

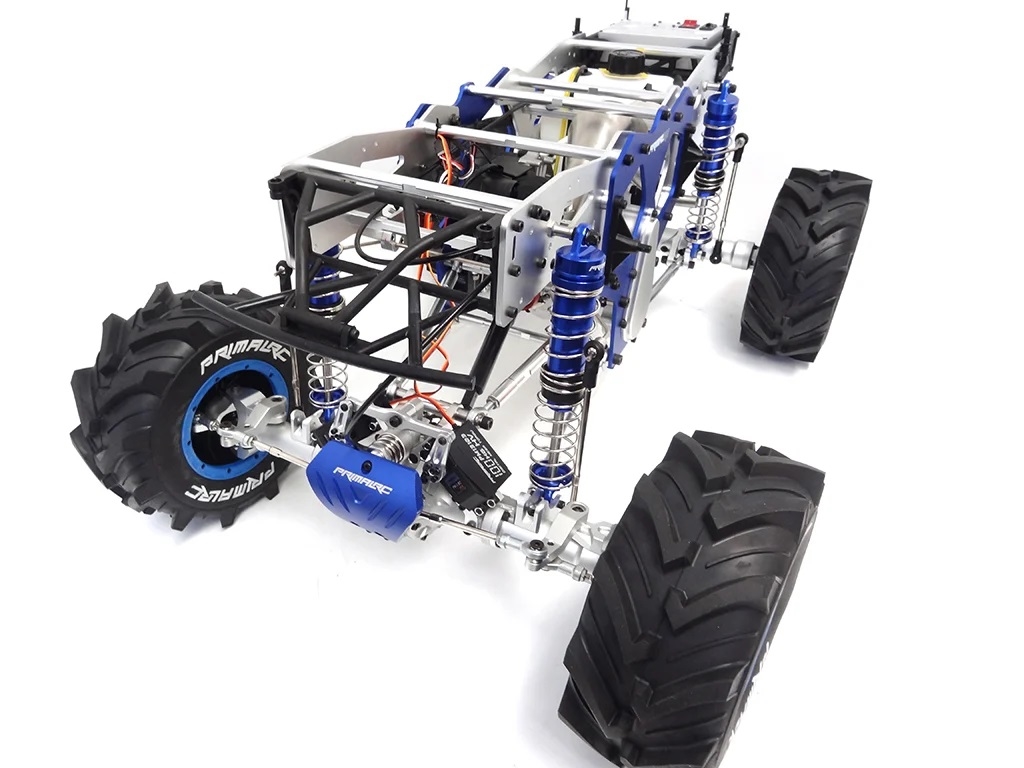

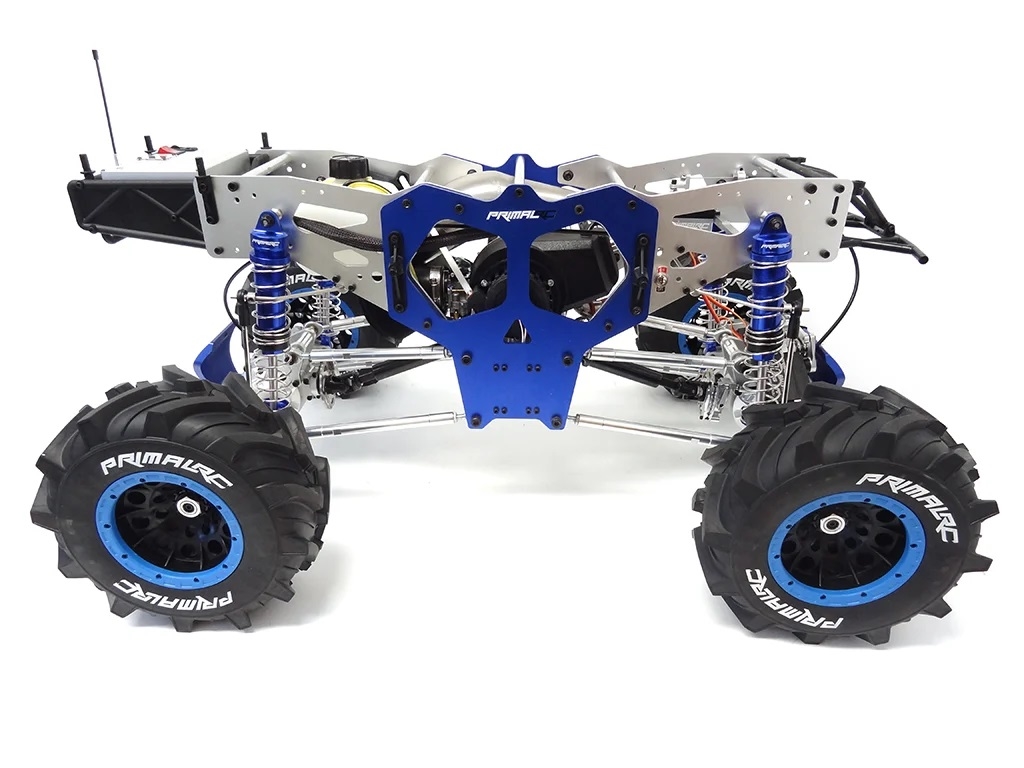

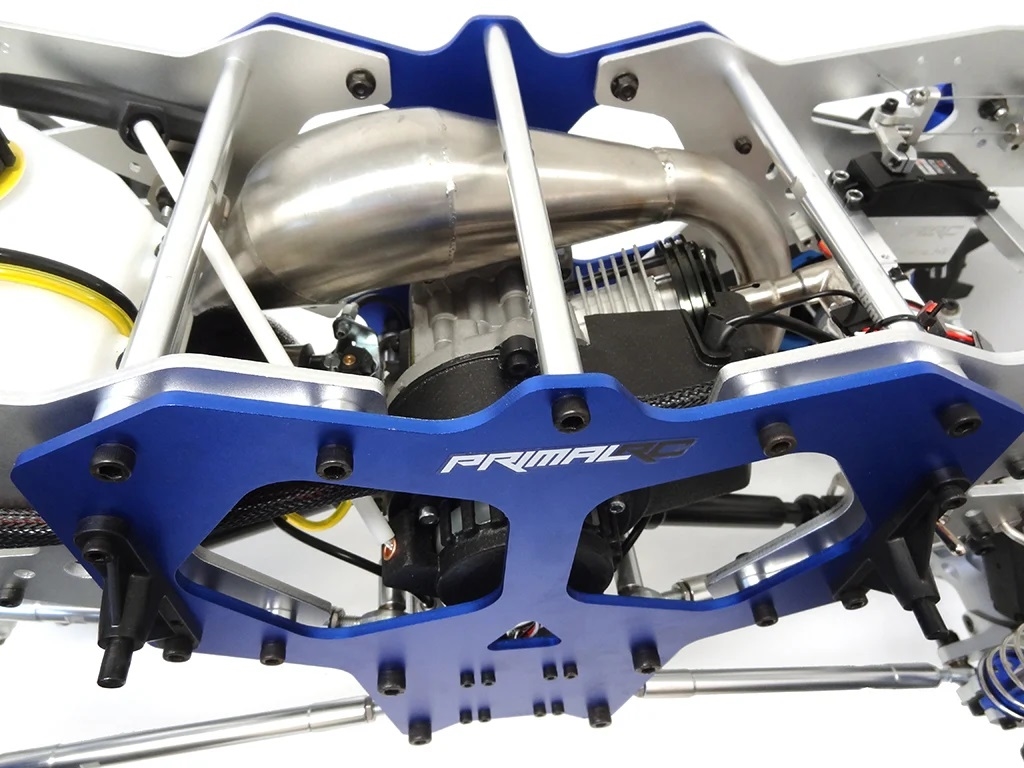

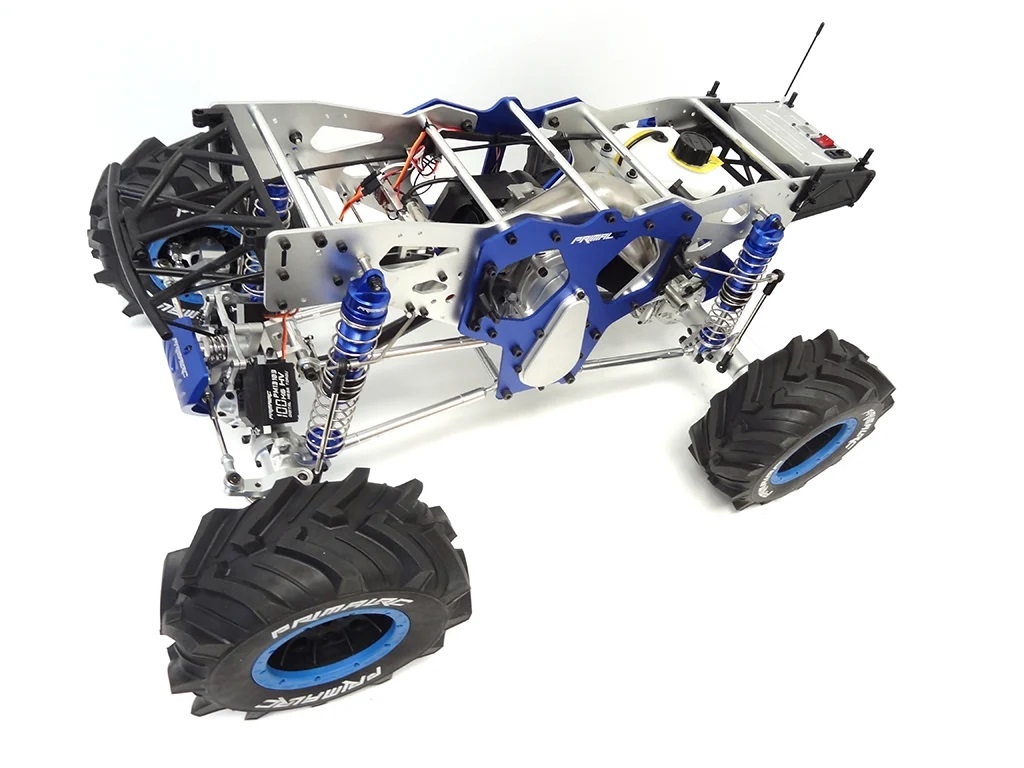

• Six Piece Modular 5mm thick CNC Aluminum chassis
• 49cc 4 bolt 2 stroke reed valve 2 stroke pull start engine with remote engine kill switch!

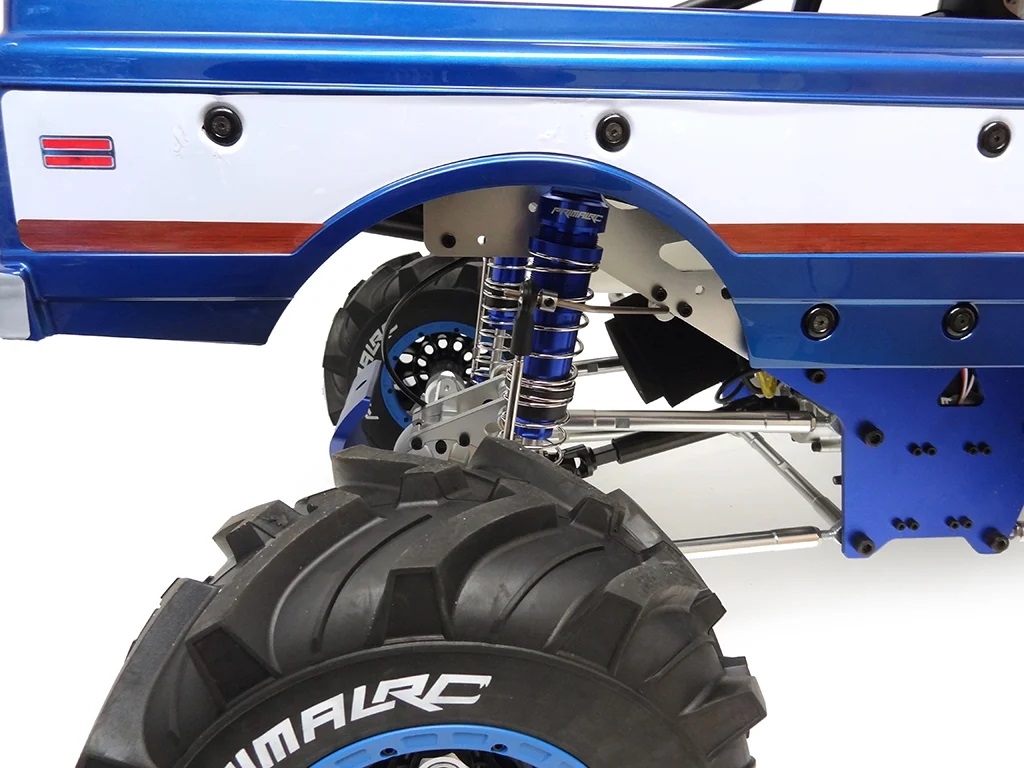

• Upgraded Large Capacity MEGA Shocks with huge 10mm shock shafts
• Upgraded Aluminum Enclosed Battery, Receiver and Remote Kill Switch Box with Voltage Meter

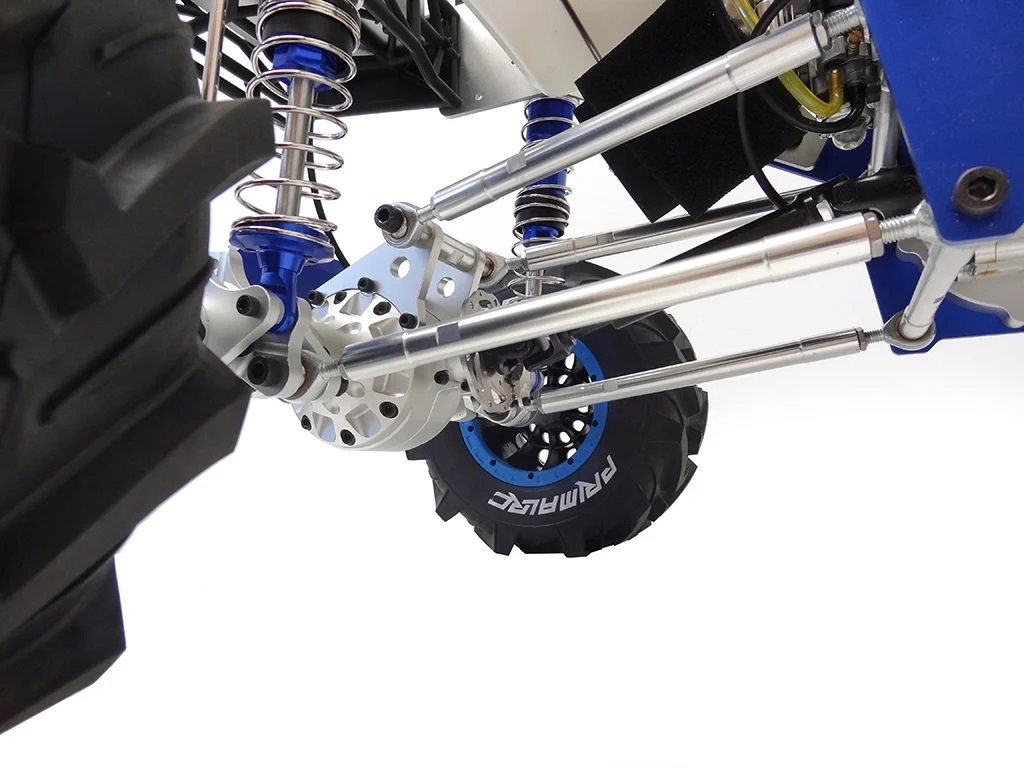

• Adjustable aluminum 4 link suspension with steel heim joint ends
• Large 78mm Centrifugal Clutch
• All Steel HD drive train and double chain driven single speed transfer case with counter rotating drive shafts
• 5 different interchangeable gear ratios to choose from.

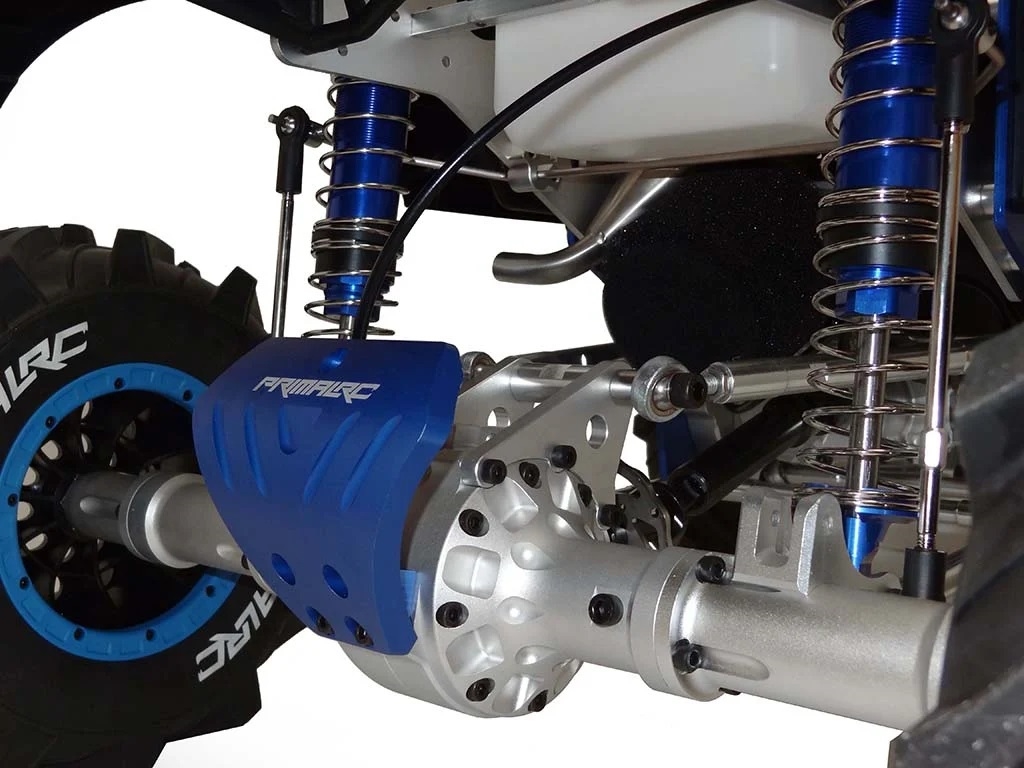

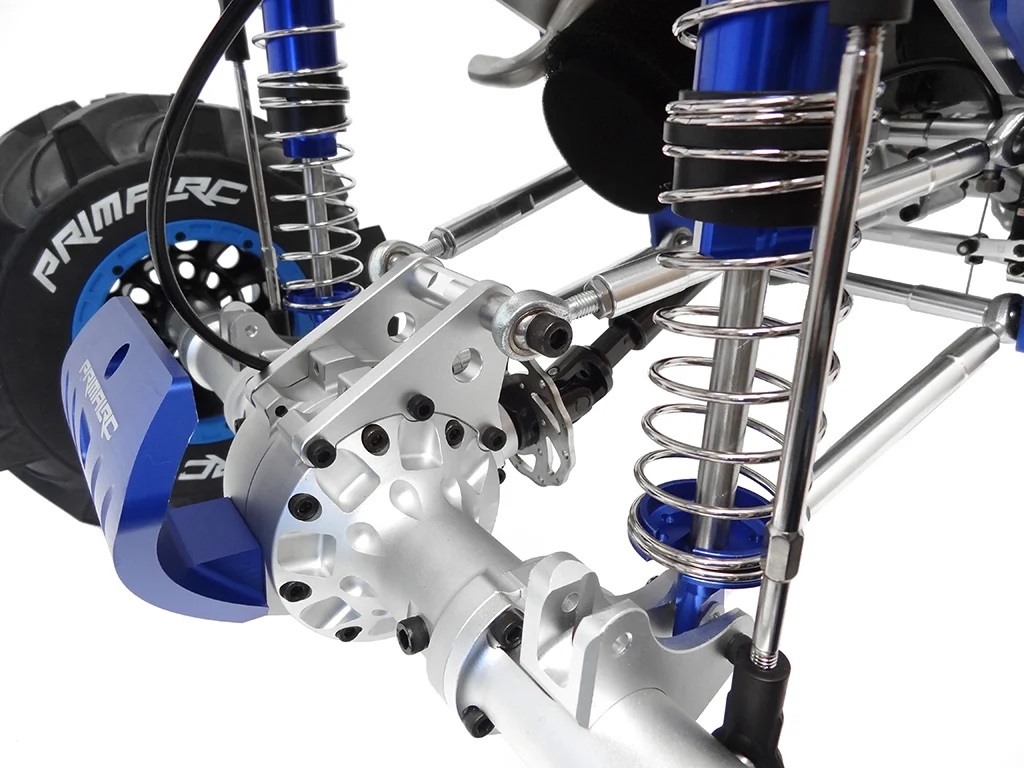

• Heavy Duty CNC Aluminum modular Axles
• Front and rear CNC cased oil filled torque control differentials for awesome on road or off road performance

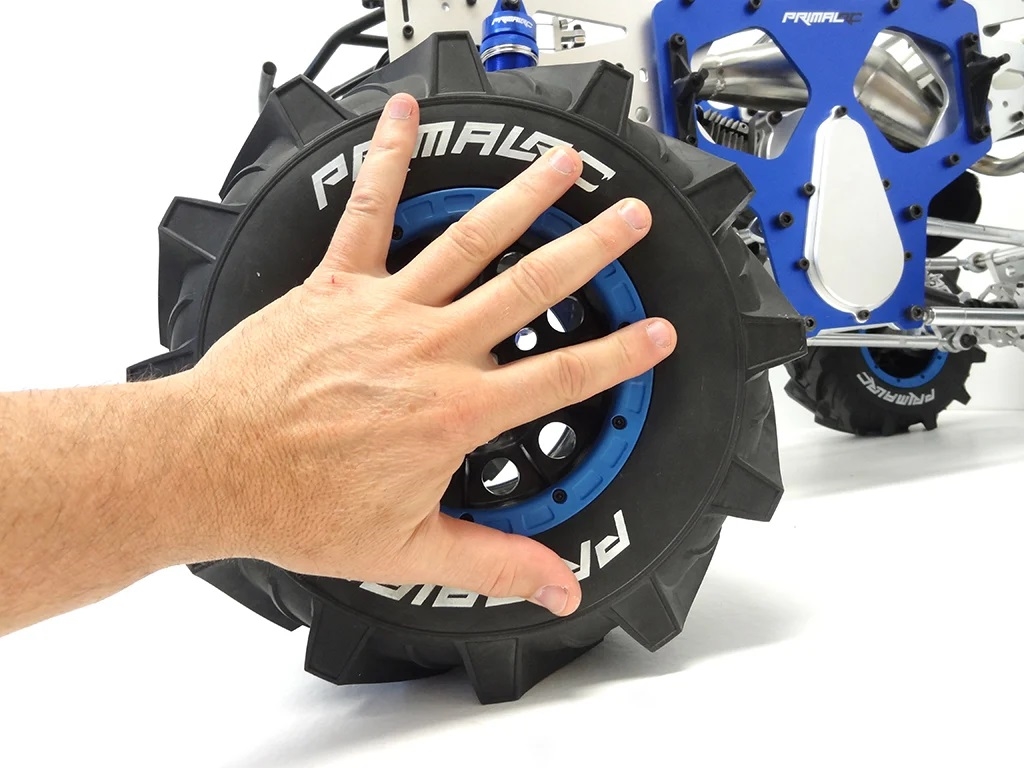

• Huge 11″x 4.5″ MEGA MUD tires mounted on 24mm hex bead-lock Nylon rims with inner tire foams
• Stainless Steel Tuned pipe for maximum performance and sound
• Front and Rear Sway bars

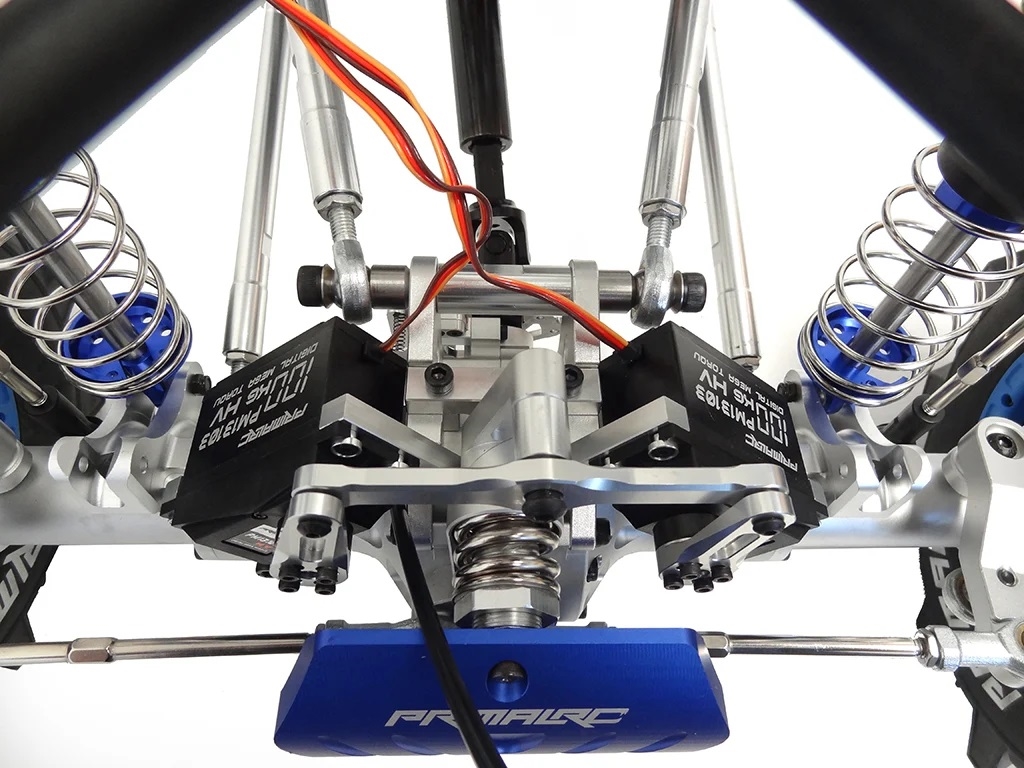

• Dual Steering Servos with inter grated adjustable servo saver system with steel heim joints

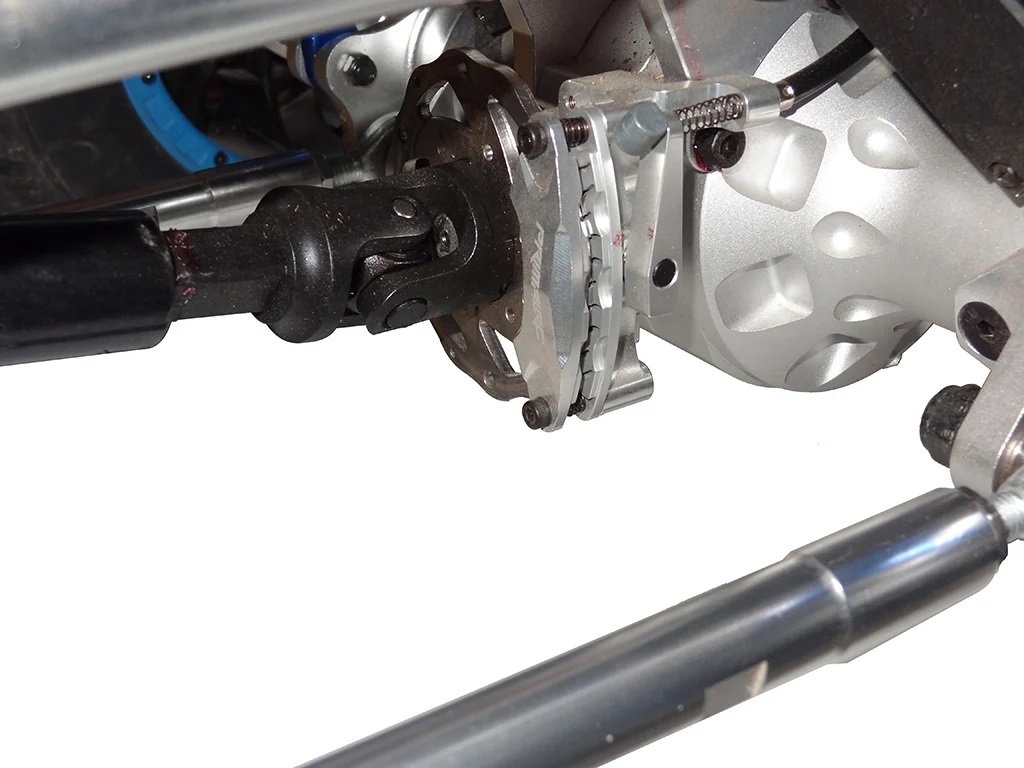

• Front and Rear axle mounted mechanical disc brakes

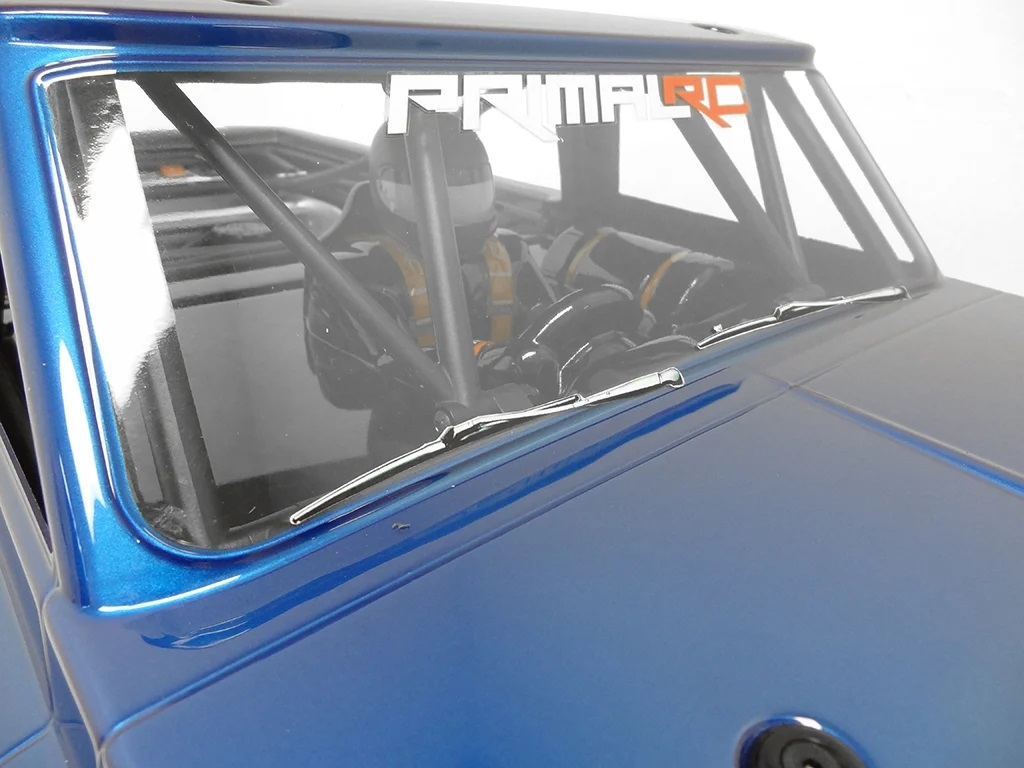

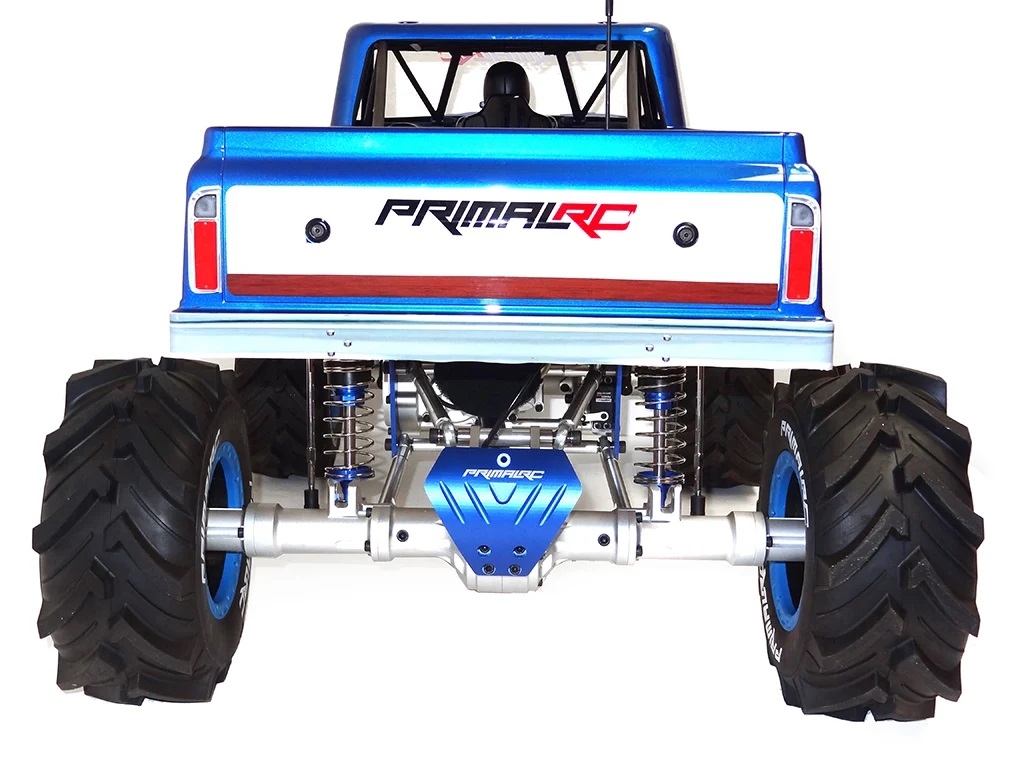

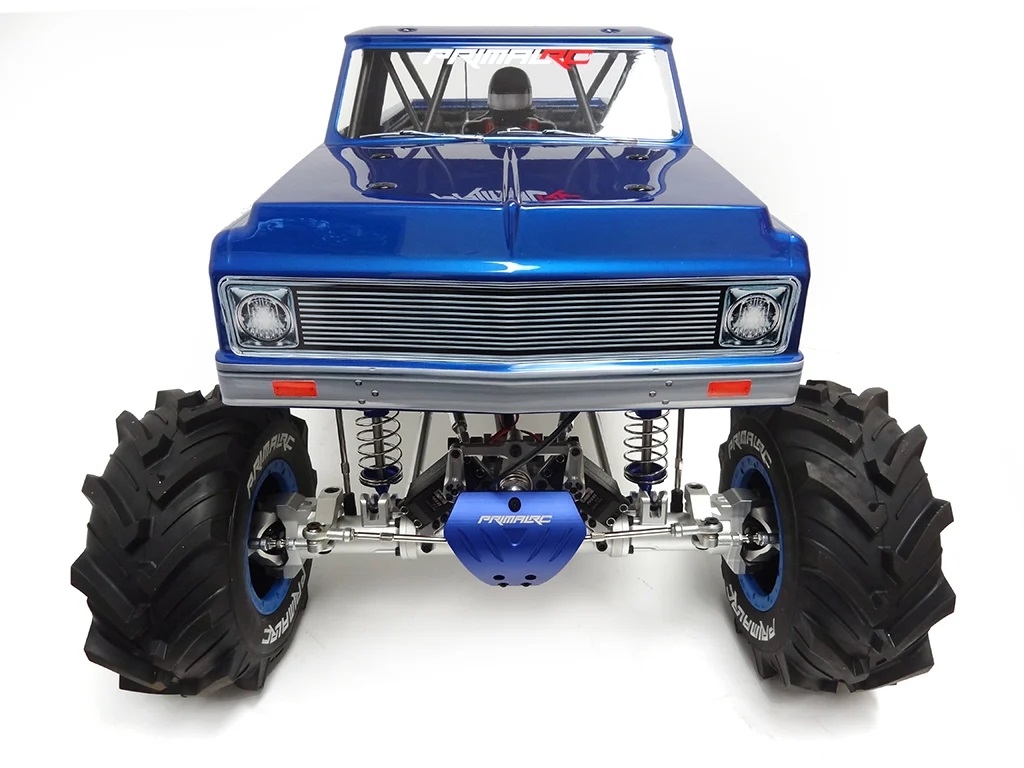

• Strong Plastic roll cage and Strong 2 piece Poly carbonate body shell with detailed interior and Classic Pickup Truck Sticker Sheet
• Radio controlled reverse feature
• Strong CNC Aluminum parts used just about everywhere in this truck!
• Ball bearings used throughout the entire vehicle
• Large 1200cc Fuel Tank for super long run times (a few hours!)

Radio Features

• FLYSKY FS-GT5 2.4 ghz 6 channel computer radio that features include:
• 4-AA Battery holder for light weight and improved balance
• Easy to read LCD screen
• 200 Meter max range 20 model memory
• Servo reversing on all channels
• Dual rate steering
• End point adjustment on all channels
• Exponential steering and throttle
• Anti-lock braking, Digital trim display
• Servo sub-trim for steering and throttle
• 3 character model naming
• Built in adjustable Fail-safe
• Low voltage alarm.
• Crawl mode ready for 4 wheel steering set ups
• Even more…..

Metal parts

• Steel 24mm wheel hubs
• CNC Aluminum 6 piece modular frame
• CNC Aluminum Dual servo steering system and servo saver

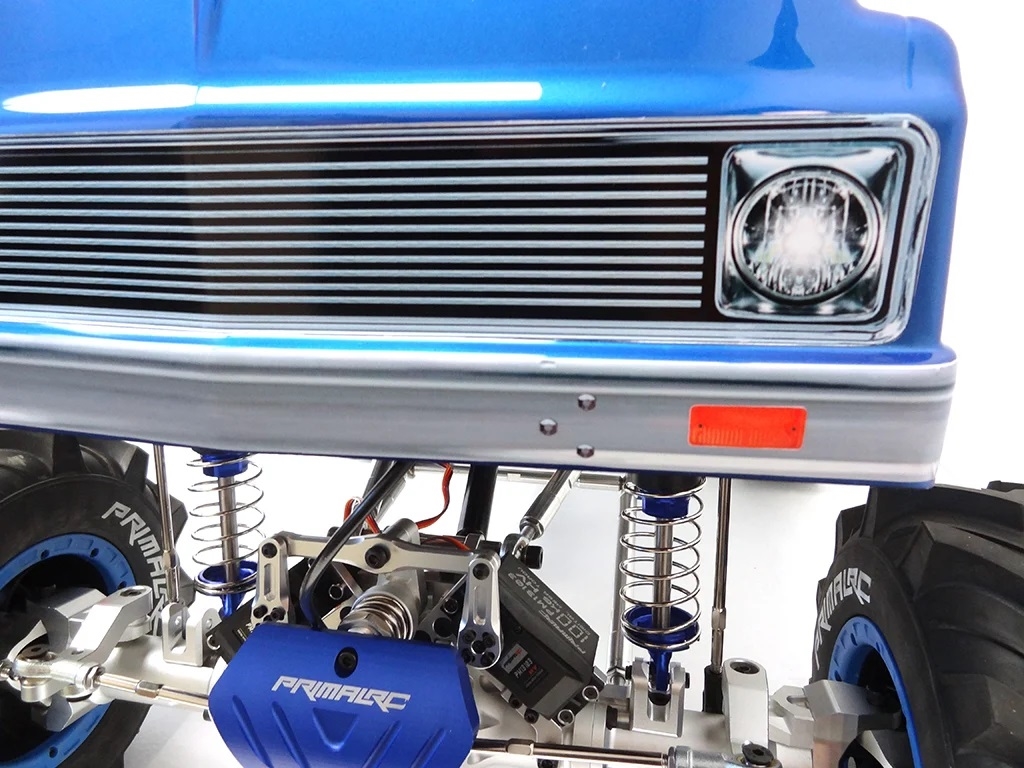

• CNC Aluminum front skid plate and axle/steering protector
• CNC Aluminum chassis connectors
• CNC Aluminum engine mounts
• CNC Aluminum enclosed clutch brace
• CNC Aluminum chain drive case cover
• CNC Aluminum transmission case
• CNC Aluminum front and rear brakes with steel rotors
• CNC Aluminum Differential with steel oversize ring and pinion gears
• CNC Aluminum Axle tubes, with dual ready shock mounts
• CNC Aluminum Modular Axles
• CNC Aluminum parts throughout the entire vehicle!

Electronic Features

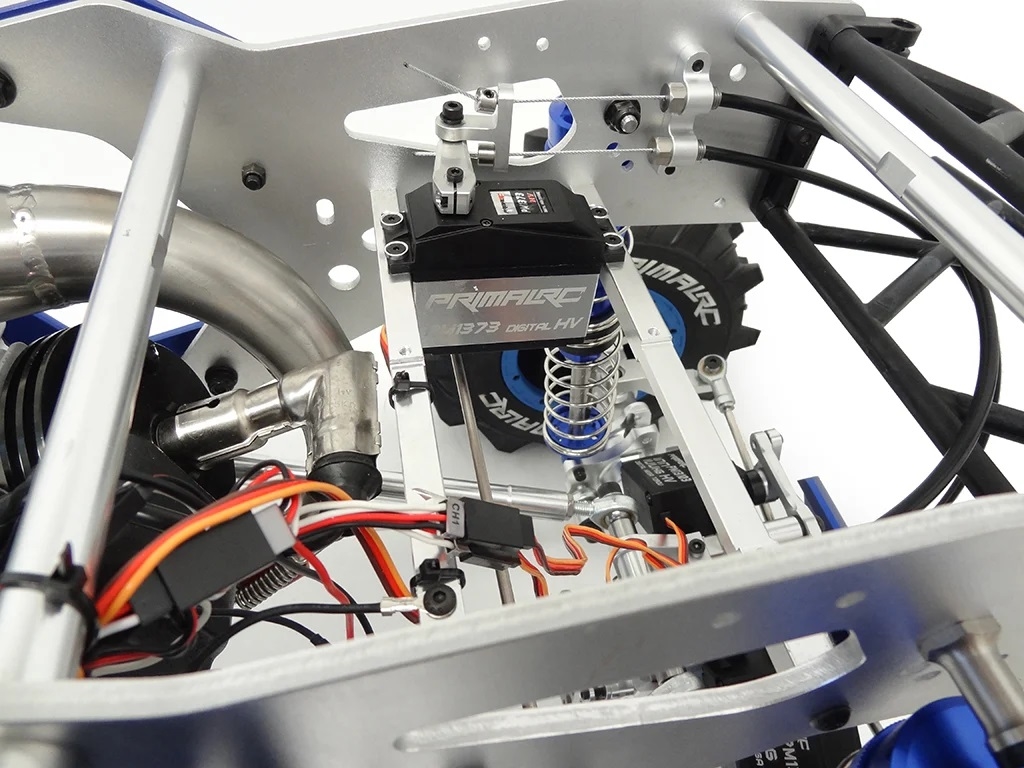

• (2) HV 100KG Steering Servos
• Single HV 70KG Brake Servo
• HV 20KG Throttle Servo
• HV 20KG Reverse Servo
• 7.2 volt 5000mah Servo/Receiver Battery with wall charger
• Remote activated engine kill switch

Specifications

Skill Level Advanced
Speed 20-30+ MPH (with high speed gears installed)
Length 39.5 inches
RTR Weight 75 pounds
Height 23 inches
Wheelbase 24 inches
Tires 11 x 4.5 inches
Track 27 inches
Wheel Diameter 5.5 inches
Wheel Width 4 inches
Minimum Ground Clearance 3.5 inches
