RC4WD GELANDE II "LWB" RTR W/D110 BODY SET - Z-RTR0032
RC4WD GELANDE II "LWB" RTR W/D110 BODY SET - Z-RTR0032

List Price: CAD$853.50
Price: CAD$779.99
Savings: CAD$73.52

Stock Status:Contact us for availability


Item Number: RC4ZRTR0032
Qty:

Description


Experience the versatility and advanced design of the Gelande 2 for yourself. Packed full of capability, the Gelande 2 is ready for any challenging condition. Put your off-road driving to the test and see why the G2 can easily maneuver extreme descents and climb with ease.

The G2 is built with quality materials and craftsmanship like the R3 single speed transmission providing power down to the transfer case and out to the Yota II axles.

The G2 comes with a 4 link rear and 3 link panhard bar suspension as a standard feature. The chassis mounted servo is out of view for a more scale appearance.

The G2 is completely versatile and can pull off many looks and styles. With the countless options available, RC4WD let's you customize your G2 exactly how you want without sacrificing performance. From emergency and expedition vehicles to daily drivers and hard core rock climbing rigs, the core of the G2 is built for the true off-road enthusiast!

The G2 now includes everything you need down to the battery and charger to start hitting the trails right out of the box!

Are you ready for your off-road experience?

Cast Metal Axles with Locked differentials
Custom Designed for True to Scale Looks
Twister High Torque Metal Gear Digital Servo
Chassis Mounted Steering servo
540 Crawler Brushed Motor 45T
3 Link Front and 4 Link Rear Suspension
Super Grip Dirt Grabber Tires
R3 Single Speed Transmission

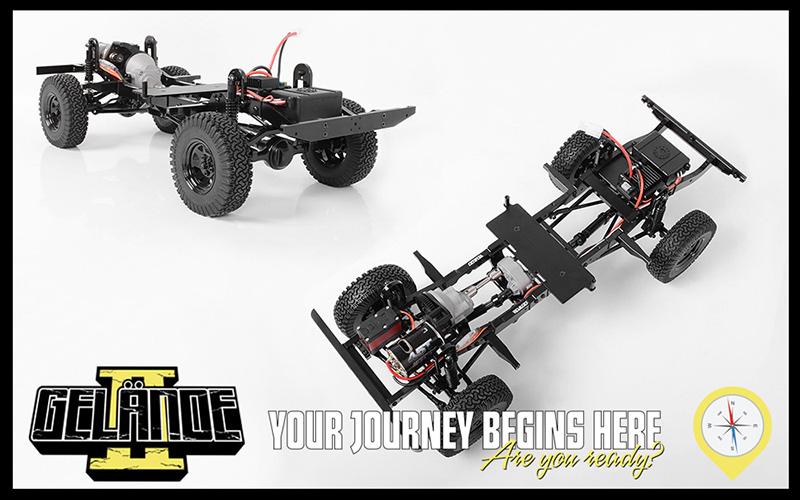

Realistic Aluminum Ladder Frame Chassis
Center Mounted Realistic 4x4 Transfer Case
Outcry II Waterproof ESC
Plastic Fuel Cell Receiver Box
Dual Spring Oil Filled Shock Absorbers
1.9" Stamped Steel Beadlocks W/Lug Nuts
6-Cell 3000MAH NiMH Battery Pack
NiMH Peak Battery Charger




Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide .8 Mod Hardened Steel Gears

R3 Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 4.57:1 Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

Cast Yota II Axles
Ratio: 15/40 = 2.67:1
Width at Hex: 180.5mm

G2 Suspension
Double Triangulated 4 Link Rear Suspension
3 Link Suspension with Panhard Bar

Shock Absorbers
Dual Spring 80mm Shocks: Can be Oil Filled

Wheels

Type: 1.9'' 5 Lug Wagon Wheels
Hub: Pin Type
Width: 25mm
Back Spacing: 11mm

Bumpers
Machined Billet Aluminum, Lightweight

G2 Truck Dimensions
Wheelbase: 331mm (13")
Width: 221mm (8.7")
Height: 246mm (9.89")
Ground Clearance: 48mm (1.8")
Final Drive Ratio: 31.9:1
Weight: 6.99Lbs / 3.17Kg

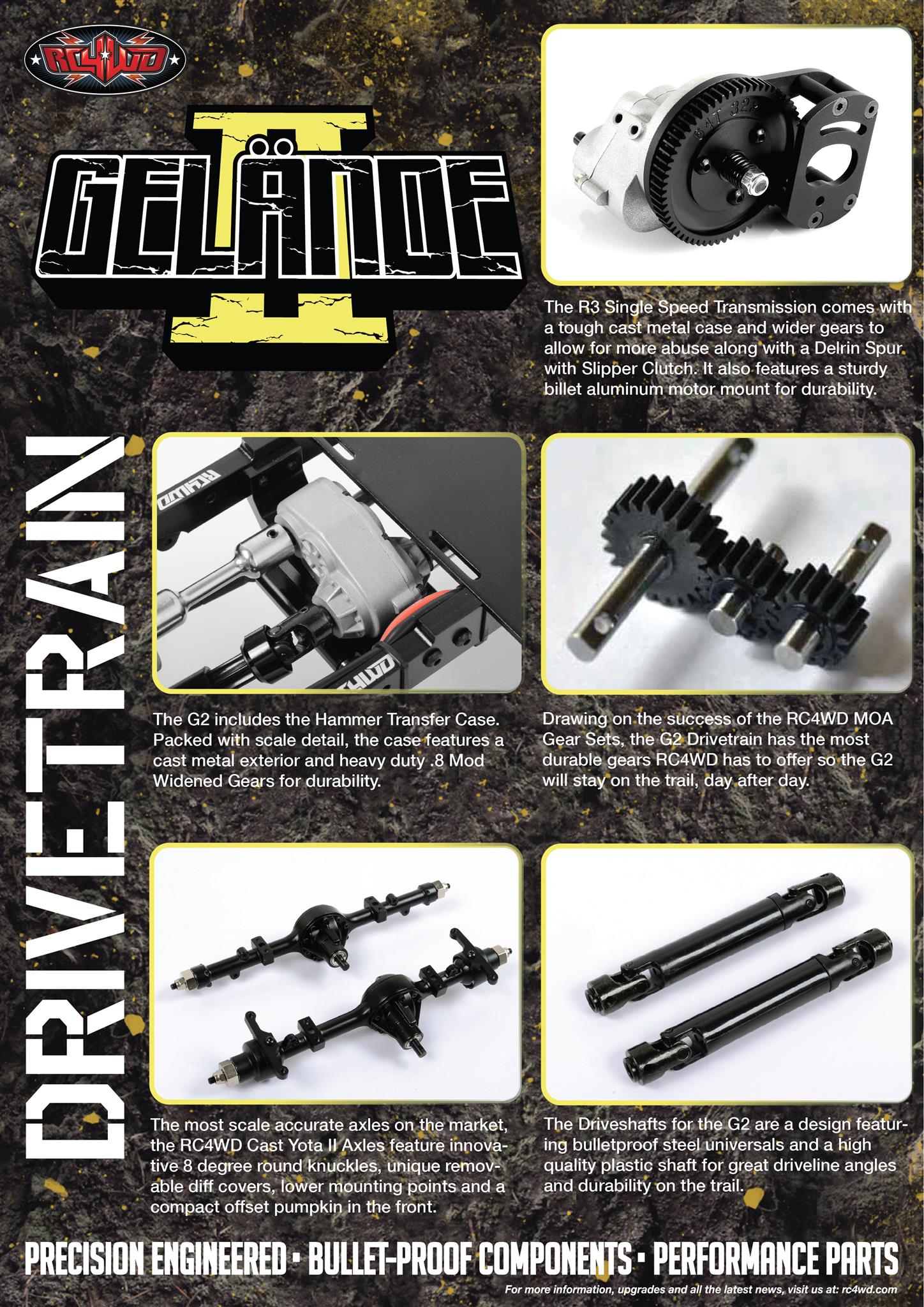

DRIVETRAIN

The R3 Single Speed Transmission comes with a tough cast metal case and wider gears to allow for more abuse along with a Delrin Spur with Slipper Clutch. It also features a sturdy billet aluminum motor mount for durability.

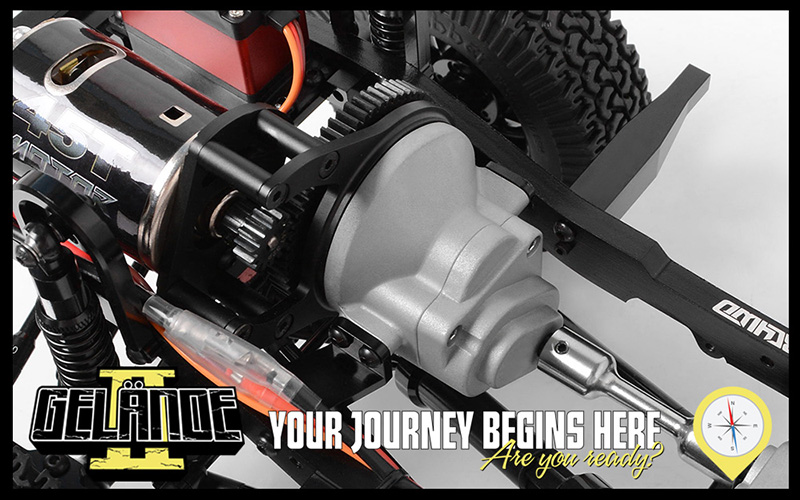

The G2 includes the Hammer Transfer Case. Packed with scale detail, the case features a cast metal exterior and heavy duty .8 Mod Widened Gears for durability.

Drawing on the success of the RC4WD MOA Gear Sets, the G2 Drivetrain has the most durable gears RC4WD has to offer so the G2 will stay on the trail, day after day.

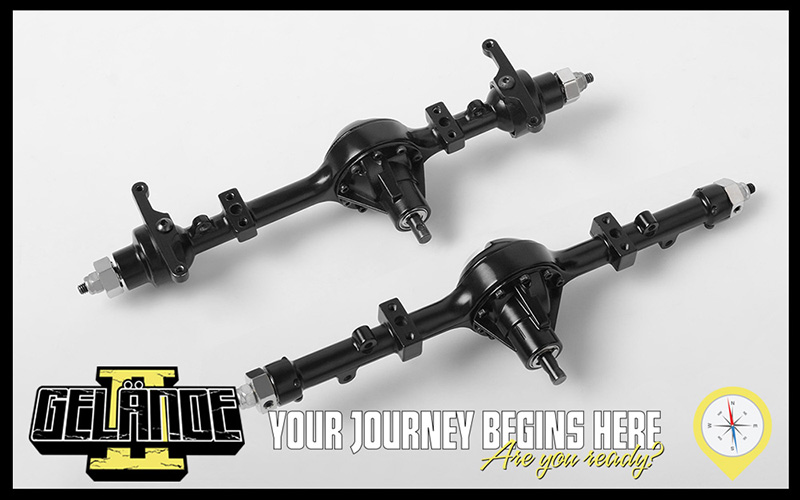

The most scale accurate axles on the market, the RC4WD Cast Yota II Axles feature innovative 8 degree round knuckles, unique removable diff covers, lower mounting points and a compact offset pumpkin in the front.

The Driveshafts for the G2 are a design featuring bulletproof steel universals and a high quality plastic shaft for great driveline angles and durability on the trail.







SUSPENSION

The G2 Chassis features a molded fuel cell that doubles as an electronics storage box plus an aluminum, frame-mounted under cab electronics tray for multiple electronics mounting options. Also includes a sturdy battery tray with strap mounts.

The G2 includes a set of new RC4WD Dual Spring Shocks. An all new design, these ultimate scale shocks offer realistic looks and the ultimate in performance. Machined from billet aluminum with dual springs and totally rebuildable.

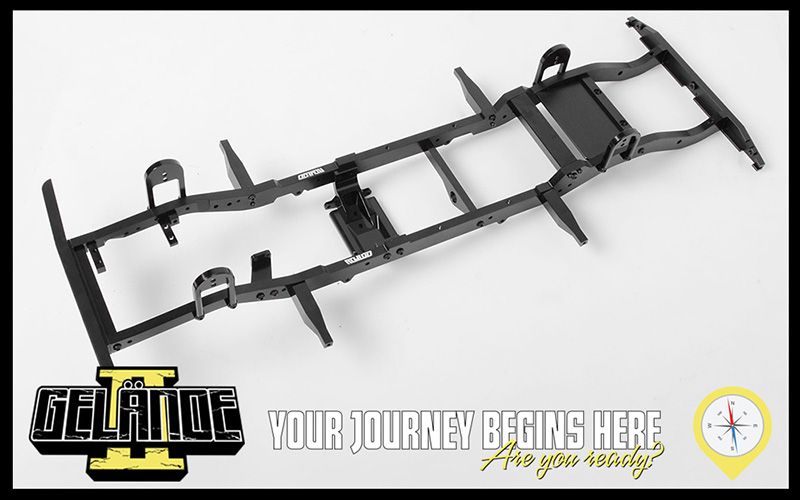

The G2 Chassis is a machined billet aluminum ladder frame with an all link suspension design, scale shock hoops, chassis servo mounts and hard body mounting points for the ultimate in strength..

The G2 includes a set of RC4WD Black Stamped Steel 1.9 Internal Beadlock Wheels. Featuring a super tough black finish, aluminum internal locking ring and popular 5 lug design with separate hub.

Every G2 needs a tough set or rock grabbing tires and the included Dirt Grabbers in X3 Compound deliver the traction as well as perfect scale looks in just the right size.

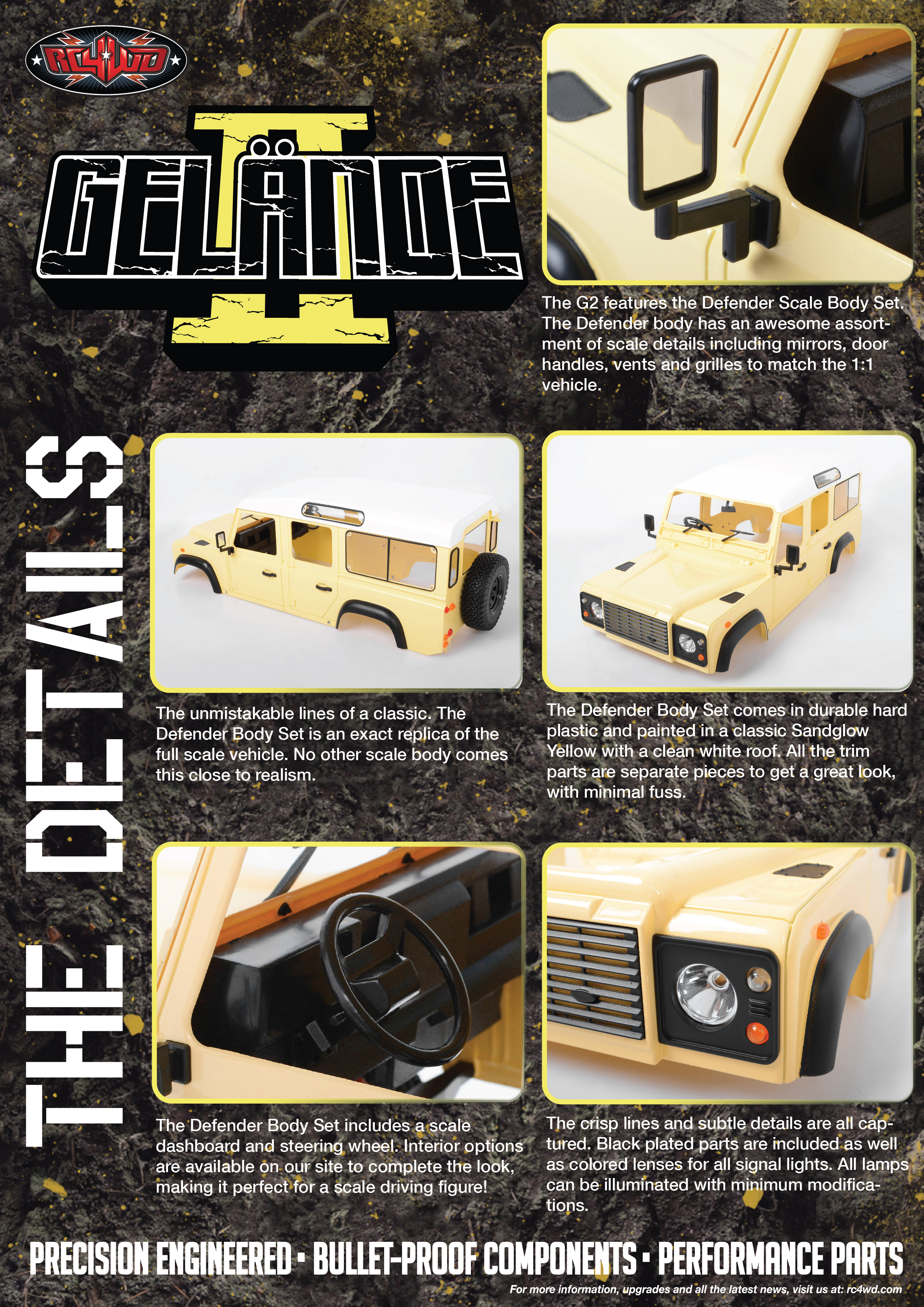

DETAILS

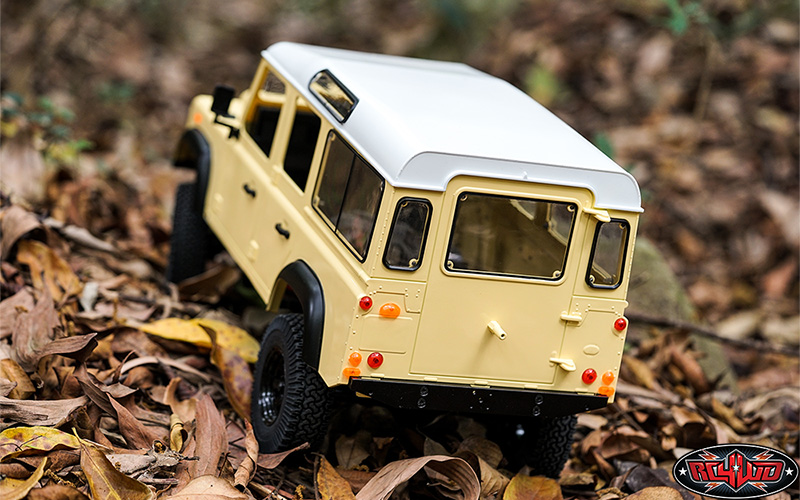

The G2 features the Defender Scale Body Set. The Defender body has an awesome assortment of scale details including mirrors, door handles, vents and grilles to match the 1:1 vehicle.

The unmistakable lines of a classic. The Defender Body Set is an exact replica of the full scale vehicle. No other scale body comes this close to realism.

The Defender Body Set comes in durable hard plastic and painted in a classic Sandglow Yellow with a clean white roof. All the trim parts are separate pieces to get a great look, with minimal fuss.

The Defender Body Set includes a scale dashboard and steering wheel. Interior options are available on our site to complete the look, making it perfect for a scale driving figure!

The crisp lines and subtle details are all captured. Black plated parts are included as well as colored lenses for all signal lights. All lamps can be illuminated with minimum modifications.

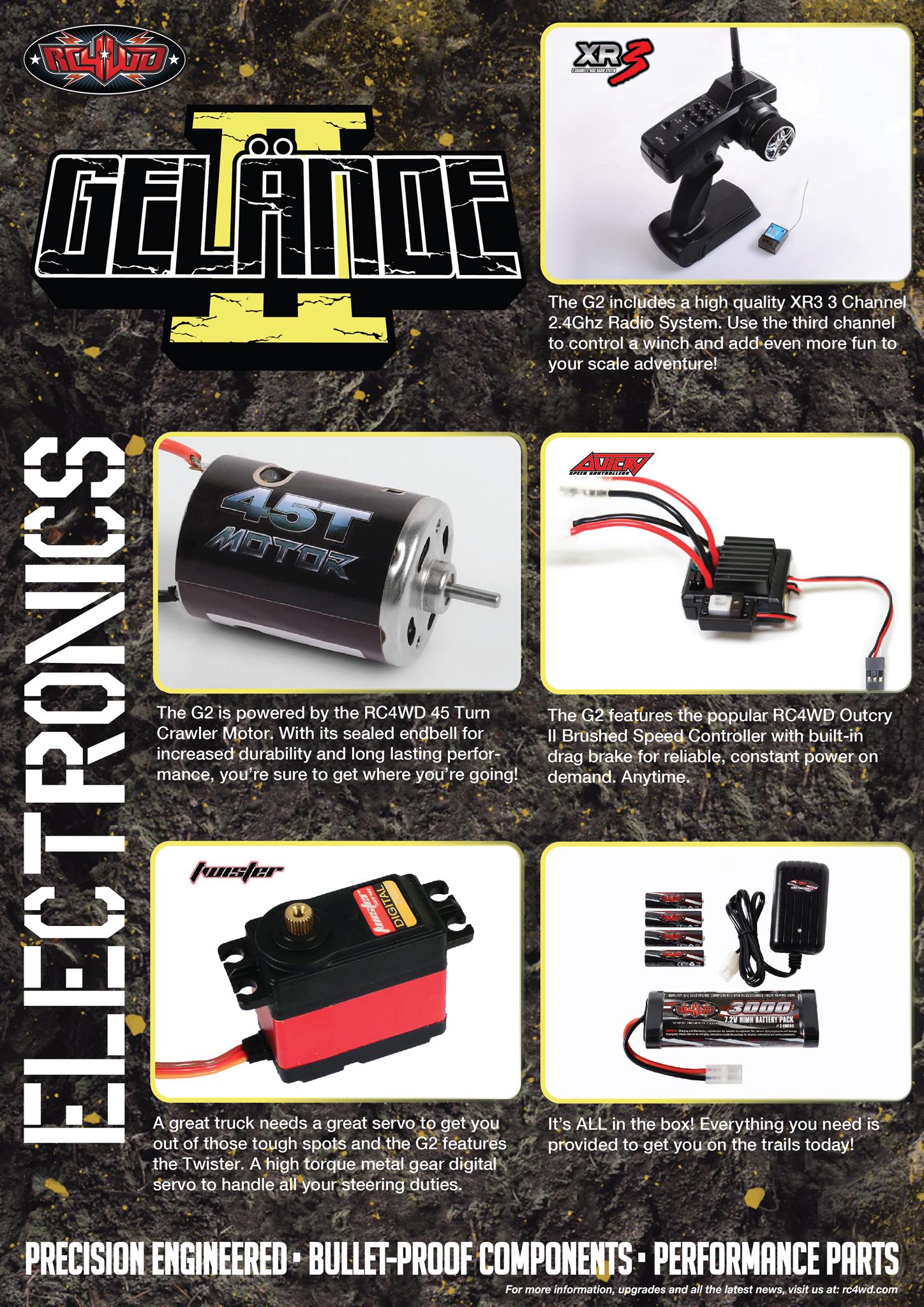

ELECTRONICS

The G2 includes a high quality XR3 3 Channel 2.4Ghz Radio System. Use the third channel to control the winch and add even more fun to your scale adventure!

The G2 is powered by the RC4WD 45 Turn Crawler Motor. With its sealed endbell for increased durability and long lasting performance, you're sure to get where you're going!

The G2 features the popular RC4WD Outcry II Brushed Speed Controller with built-in drag brake for reliable, constant power on demand. Anytime.

A great truck needs a great servo to get you out of those tough spots and the G2 features the Twister. A high torque metal gear digital servo to handle all your steering duties.

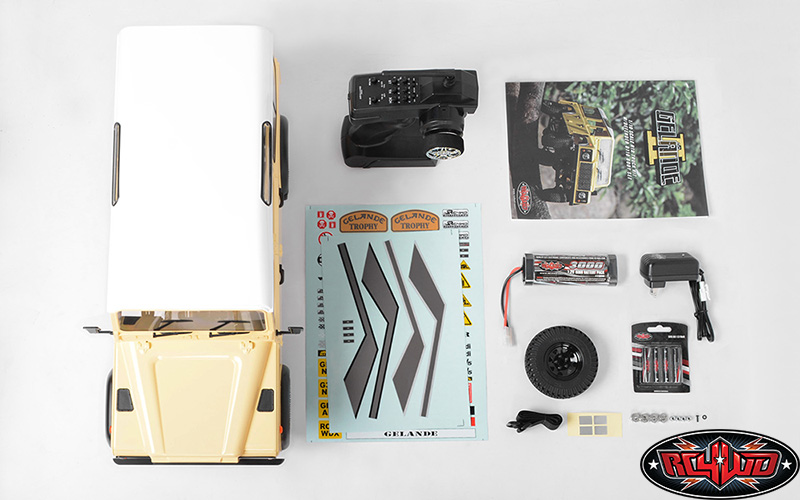

It's ALL in the box. Everything you need is provided to get you on the trails today!







What's Included:

  • 1x RC4WD Gelande II "LWB" RTR w/D110 Body Set

Replacements Parts:

  • Metal Drive Extended Coupling (Z-S1148)
  • 129mm Aluminum Link (Black) (Z-S1146)
  • Gelande II Electronics Deck (Z-S0793)
  • Gelande 2 Aluminum Body Mounts (Z-S0790)
  • Servo Mounts for Gelande 2 Chassis (Z-S0791)
  • Battery Plate for Gelande 2 (Z-S0792)
  • Front Shock Hoops for Gelande 2 Chassis (Z-S0798)
  • Rear Shock Hoops for Gelande 2 Chassis (Z-S0799)
  • Gelande 2 Front Replacement Bumper (Z-S0800)
  • Gelande 2 Rear Replacement Bumper (Z-S0801)
  • R3 Single Speed Transmission Mounts (Z-S0802)
  • Metal Drive Coupling for Gelande 2 (Z-S0803)
  • Transfer Case and Lower 4 Link Mount for Gelande 2 Chassis (Z-U0027)
  • 59mm (2.32") Aluminum Link for Gelande 2 (Z-S0807)
  • 73mm (2.87") Aluminum Link for Gelande 2 (Z-S0805)
  • 65.3mm (2.57") Aluminum Link for Gelande 2 (Z-S0817)
  • 70mm (2.75") Aluminum Link for Gelande 2 (Z-S0819)
  • Drag Link for Yota II (104.5mm / 4.11in) (Z-S0810)
  • Hammer Transfer Case (1.47/1) (Z-U0024)
  • 5 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (Black) (Z-W0129)
  • Heavy Duty Metal Servo Arm 25t Futaba (Z-S0822)
  • Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
  • Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
  • R3 Scale Single Speed Transmission (Z-U0028)
  • 14t 32p Hardened Steel Pinion Gear (Z-S0430)
  • Fuel Cell Radio Box (Z-S0592)
  • M3 Mini Plastic Rod End (20x) (Z-S0389)
  • M3 Medium Straight Plastic Rod End (20x) (Z-S0399)
  • M3 Offset Short Plastic Rod End (20x) (Z-S0401)
  • M3 Short Bent Plastic Rod End (20x) (Z-S0402)
  • Dirt Grabber 1.9" All Terrain Tires (Z-T0005)
  • Dual Spring 80mm Scale Black Shocks (Ver 2) (Z-D0039)
  • Gelande 2 Front 3 Link & Panhard Mount (Black) (Z-S0794)
  • Gelande 2 Front 3 Link & Panhard Mount (Black) (Z-S0795)
  • 540 Crawler Brushed Motor 45T (Z-E0004)
  • Twister High Torque Metal Gear Digital Servo (Z-E0035)
  • XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0009)
  • RC4WD 6-Cell 3000mAh NIMH Battery Pack (Z-E0090)
  • RC4WD AA Batteries (Z-S1718)
  • RC4WD NiMH Peak Battery Charger (Z-E0092)
  • Heavy Duty Nylon Strap Lock (5) (Z-S0552)
  • Metal Shield Bearing 5x11x4mm (Z-S0683)

Replacement Hardware:
  • 1mm Black Spacer with M3 Hole (10) (Z-S0809)
  • 2mm Black Spacer with M3 Hole (10) (Z-S0600)
  • 5mm Black Spacer with M3 Hole (10) (Z-S0821)
  • 3mm Black Spacer with M3 Hole (10) (Z-S0806)
  • Steel Button Head Cap Screws M3 x 6mm (10) (Z-S0651)
  • Steel Button Head Cap Screws M3 x 8mm (10) (Z-S0652)
  • Steel Button Head Cap Screws M3 x 10mm (10) (Z-S0653)
  • Steel Button Head Cap Screws M3 x 12mm (10) (Z-S0654)
  • Steel Button Head Cap Screws M3 x 14mm (10) (Z-S0655)
  • Steel Button Head Cap Screws M3 x 16mm (10) (Z-S0656)
  • Steel Flat Head Socket Cap Screw M3 x 8mm (10) (Z-S0649)
  • Steel Flat Head Cap Screws M3 x 10mm (10) (Z-S0860)
  • Steel Flat Head Socket Cap Screw M3 x 12mm (10) (Z-S0896)
  • Steel Flat Head Cap Screws M3 x 14mm (10) (Z-S0746)
  • Steel Socket Head Cap Screws M3 x 25mm (10) (Z-S0739)
  • M4 Flanged Lock Nut (Black) (Z-S0620)
  • Nylock Nuts M3 (Black) (Z-S0629)
  • M3 x 15mm Set Screw (10) (Z-S0650)
  • M3 X 10mm Set Screw (10) (Z-S0308)
  • M3 X 5mm Set Screw (10) (Z-S0125)
  • M3 Driveshaft Screw Pin (5) (Z-S0804)
  • Steel Socket Head Cap Screws M2 x 10mm (10) (Z-S0849)
  • Steel Socket Head Cap Screws M2.5 x 6mm (10) (Z-S0855)
  • Button Head Self Tapping Screws M2.5 X 8mm (Black) (Z-S1572)

Optional Parts:

  • 1.9" 5 Lug Steel Wheel Hex Hub (Z-S0734)
  • 1.9 5 Lug Steel Wheel Hex Hub with Brake Rotor (Z-S0532)
  • Scale Aisin/Yota Style Hubs (Z-S0196)
  • XVD Axle for Ultimate Scale Yota II G2 Axle (Z-S0823)
  • Gelande 2 Steering Guard (Z-S0824)
  • Scale Steel Punisher Shaft V3 (90.5mm - 110.5mm / 3.56" - 4.35") 5mm Hole (Z-S0826)
  • Ultra Scale Hardened Steel Driveshaft (46mm - 50mm / 1.81" - 1.96") 5mm (VVV-S0006)
  • Gelande Side Rock Sliders (Z-S0137)
  • RC4WD Marlin Crawler Side Plastic Sliders for Trail Finder 2 (Z-S0596)
  • RC4WD Marlin Crawler Side Metal Sliders for Trail Finder 2 (Z-S0753)
  • RC4WD King Off-Road Scale Dual Spring Shocks (80mm) (Z-D0035)
  • #1 Aluminum Bumper Mount For Trail Finder 2 (Z-S0006)
  • Shock Hoops for Trail Finder 2 Chassis (Z-S0597)
  • Triton Transfer Case (1:1) (Z-U0029)
  • Optional Rear Bumper Mount for Gelande 2 (Z-S0993)
  • Yota II Scale Diff Cover (Z-S0907)
  • Blade Snow Plow Mounting kit for Gelande 2 (Z-S1504)
  • RC4WD Bivouac 1/10 M.O.A.B Camping Trailer w/Tent (Z-H0007)
  • BigDog 1/10 Dual Axle Scale Boat Trailer (Z-H0006)
  • Roof Rack for Gelande II D110 (VVV-C0242)
  • Rear Ladder for Gelande II (D90/D110) (VVV-C0246)
  • Rear Winch Bumper for Gelande II (D90/D110) (VVV-C0244)
  • 1/10 Tire Holder (D90/D110) (VVV-C0249)
  • K44 Ultimate Scale Cast Front Axle (Z-A0101)
  • RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (120mm/4.72") (Z-E0095)
  • RC4WD 1/10 Warn 9.5cti Winch (Z-S1079)
  • RC4WD Delrin Roof Rack (Z-X0044)
  • Functional Metal Light & Winch Bumper for Gelande II D90/D110 (VVV-C0125)
  • Rear Center Window Guard for Gelande II D90/D110 (VVV-C0124)
  • Rear Small Window Guards for Gelande II D90/D110 (VVV-C0122)
  • Side Window Guards Pair for Gelande II D90/D110 (VVV-C0121)
  • RC4WD Ballistic Fabrications Diff Cover for Yota II Axle (Z-S1605)
  • Gelande II D90/D110 - Heritage Grill (Z-S1875)
  • D90/110 Aluminum Front Grille and Headlight Surrounds (Z-S1654)
  • D90/110 Aluminum Hood and Side Vents (Z-S1656)
  • RC4WD Teraflex Diff Cover for Yota II Axle (Z-S1681)
  • Tough Armor Rear Tire Carrier for Gelande 2 (Z-S1200)
  • Tough Armor Rear Tire Holder for Gelande II (Z-S1357)
  • Gelande 2 Mounting kit for Jack Stand Truck Display (Z-S1324)
  • M3 Offset Short Aluminum Rod Ends (Red) (10) (Z-S1631)
  • M3 Offset Short Aluminum Rod Ends (Blue) (10) (Z-S1633)
  • M3 Short Straight Aluminum Rod Ends (Silver) (10) (Z-S1630)
  • M3 Short Straight Aluminum Rod Ends (Blue) (10) (Z-S1634)
  • M3 Short Straight Aluminum Rod Ends (Black) (10) (Z-S1636)
  • LED Basic Lighting System For Gelande II D90/D110 Body Set (Z-E0062)
  • Grid Design Steering Guard for Gelande II (D90/D110) (VVV-C0239)
  • Roof Rack w/Lights for Gelande II D110 (VVV-C0243)
  • Big Boss Fender Flare Set for D90/D110 (Z-S1741)
  • Metal Front Bumper w/Lights for Gelande II D90/D110 (VVV-C0284)
  • Metal Front Bumper w/Stinger for Gelande II D90/D110 (VVV-C0285)
  • Metal Front Bumper for Gelande II D90/D110 (VVV-C0283)
  • Metal Front Bumper w/Stinger and Lights for Gelande II D90/D110 (VVV-C0286)
  • Kahn Style Wide Fenders for Gelande II D110 Body (Black) (VVV-C0314)
  • Kahn Style Front Lamp Guard for D90/D110 Bodies (Black) (VVV-C0318)
  • Kahn Style Front Grille for D90/D110 Bodies (Silver) (VVV-C0317)
  • Kahn Style Front Grille for D90/D110 Bodies (Black) (VVV-C0316)
  • Cross Lamp Bezel for Gelande II D90/D110 (VVV-C0320)
  • K44 Ultimate Scale Cast Rear Axle (Z-A0096)
  • Leaf Spring Conversion Kit for Gelande II "LWB" D110 (331mm WB) (Z-C0052)
  • Front Tube Bumper for Gelande II (D90/D110) (VVV-C0455)
  • Rear Tube Bumper for Gelande II (D90/D110) (VVV-C0456)
  • RC4WD Gelande II D110 Complete Body Set (Dark Blue) (Z-B0170)
  • RC4WD Hawkeye 1.9'' Scale Tire (Z-T0162)
  • RC4WD Interco IROK ND 1.55" Scale Tires (Z-T0163)
  • RC4WD Super Duty Blade Snow Plow (Red) (Z-X0041)
  • RC4WD Super Duty Blade Snow Plow (Yellow) (Z-X0043)
  • RC4WD Advance Adapters Atlas II Transfer Case (1.47/1) (Z-U0037)
  • RC4WD Super Duty V Snow Plow (Red) (Z-X0045)
  • RC4WD Super Duty V Snow Plow (Yellow) (Z-X0046)
  • RC4WD Clean Stripes for D110 Decal Sheet (Black) (Z-B0176)
  • RC4WD Clean Stripes for D110 Decal Sheet (Grey) (Z-B0178)
  • RC4WD Falken Wildpeak A/T3W 1.55 Scale Tires (Z-T0169)
  • Over/Under Drive T-Case Lower 4 Link Mount w/ Battery Tray for Gelande II (Z-S1899)
  • RC4WD Over/Under Drive Transfer Case (Z-U0039)
  • Breach Steel Ladder for Gelande II D90/D110 (Black) (VVV-C0604)
  • Breach Steel Ladder for Gelande II D90/D110 (Silver) (VVV-C0605)
  • Rear Window Brake Light for for Gelande II (D90/D110) (VVV-C0617)
  • Rear Window Defroster Decal for Gelande II (D90/D110) (VVV-C0618)
  • Rear Window Defroster Decal for Gelande II (D90/D110) (Z-S1897)
  • Scale Steel Punisher Shaft (87mm - 110mm / 3.42" - 4.33") (Z-S1902)
  • RC4WD Rancho Diff Cover for Yota II Axle (Z-S1924)
  • Aluminum Rear Window Guard for Gelande II (D90/D110) (VVV-C0630)
  • Scale Radiator for Gelande II D90/D110 (VVV-C0652)
  • Air Intake Cover for Gelande II D90/D110 (VVV-C0653)
  • RC4WD Goodyear Wrangler Duratrac 1.55'' 4.19'' Scale Tires (Z-T0177)
  • RC4WD Falken Wildpeak M/T 1.7" Tires (Z-T0179)
  • Overland Equipment Window for Gelande II (D90/D110) (VVV-C0705)
  • Overland Equipment Window W/ 2 Fuel Cells for Gelande II (D90/D110) (VVV-C0706)
  • Hull Front Bumper W/ Steering Guard for Gelande II (D90/D110) (VVV-C0707)
  • Hull Front Bumper W/ Steering Guard and IPF Lights for Gelande II (D90/D110) (VVV-C0708)
  • RC4WD Milestar Patagonia A/T 1.7" Tires (Z-T0181)
  • RC4WD Interco Narrow TSL SS 1.55 Scale Tires (Z-T0182)
  • RC4WD 1/10 ARB Pilbara Rooftop Tent (Z-X0034)
  • RC4WD Rancho RS9000 XL Shock Absorbers 80mm (Z-D0077)
  • RC4WD Rancho RS9000 XL Shock Absorbers 90mm (Z-D0078)
  • RC4WD Rancho RS9000 XL Shock Absorbers 100mm (Z-D0079)
  • Compass M/T 1.55" Scale Tires (Z-T0186)
  • RC4WD BFGoodrich Mud Terrain T/A KM2 1.55" Scale Tires (Z-T0190)
  • RC4WD BFGoodrich Krawler T/A KX 1.7" Scale Tires (Z-T0189)
  • RC4WD BFGoodrich All-Terrain K02 1.9" Scale Tires (Z-T0188)
  • RC4WD BFGoodrich Mud-Terrain T/A KM2 1.9" Scale Tires (Z-T0187)

Metal Rod End Upgrades:
  • M3 Bent Short Aluminum Rod Ends (Silver) (10) (Z-S1653)
  • M3 Bent Short Aluminum Rod Ends (Red) (10) (Z-S1655)
  • M3 Bent Short Aluminum Rod Ends (Blue) (10) (Z-S1657)
  • M3 Medium Straight Aluminum Rod Ends (Silver) (10) (Z-S1638)
  • M3 Medium Straight Aluminum Rod Ends (Red) (10) (Z-S1640)
  • M3 Medium Straight Aluminum Rod Ends (Blue) (10) (Z-S1642)
Instruction Manual:

Press Information:

Items of Interest: (not required for completion)


Notes:
  • While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
  • Use good quality hex drivers to avoid stripping screw heads.
  • Use thread lock when putting metal screws into metal parts.
  • Steps marked with an asterisk (*) require thread lock.
  • Use thread lock sparingly.
  • Do not over tighten screws, otherwise you may strip the thread.
  • Spare wheel may be mounted onto the back, but will require modifications.

Share your knowledge of this product. Be the first to write a review »
