SkyRC Q200 Battery Charger, AC/DC Quad charger - SK-100158-02
SkyRC Q200 Battery Charger, AC/DC Quad charger - SK-100158-02

Alternative Views:


Price: CAD$259.98

Stock Status:Contact us for availability


Item Number: SK10015802
Qty:

Description


SkyRC Q200 is a Quad-channel charger with 4 independent circuits, which can charge four different kinds of batteries simultaneously. The charger adopts a 480x320 color LCD display, and paired channels (A&C or B&D) support power distribution in AC mode. Moreover, users could either connect it to PC or mobile device to further expand their using experience. Firmware upgrade is available via PC software interface.

A very unique feature of Q200 is SCAN TO GO (automatic charging system). As the range of battery types and capacity becomes more and more, each battery requires its own dedicated charging process. It is easy to set up the charger incorrectly for a specific type of battery, resulting damage the battery or even cause accident.

The revolutionary SCAN TO GO provides a solution to this problem by allowing the user to assign a QR Code which contains all the relevant data for the battery for charging or discharging. The user can create a unique QR Code by using "SkyCharger" apps. Print it and paste it on the battery.

Using your smart phone and launch "SkyCharger" app. Since all the essential information is stored in the QR Code. All you need to do is press the Scan button, and the charge or discharge process will start automatically.

Specifications
AC Input Voltage:100-240V
DC Input Voltage:11-18V
Charge Circuit Power:DC Input: CH A/CH B: 100W CH C/CH D: 50W
AC Input: CH A+CH C=100W CH B+CH D=100W;
CH A/CH B: 50-100W CH C/CH D: 0-50W
Discharge Circuit Power:4 x 10W
Charger Current Range:CH A/CH B 0.1-10A
CH C/CH D 0.1-5A
Discharge Current Range:0.1A-2.0A x 4
Current Drian for Balancing Port:Max 200mA/cell
Trickle Charging Current:50mA-300mA & OFF
LiPo/LiFe/Lilon/LiHV Battery Cell Count:1-6S
NiMH/NiCd Battery Cell Count:1-15S
Pb Battery Voltage:2-20V

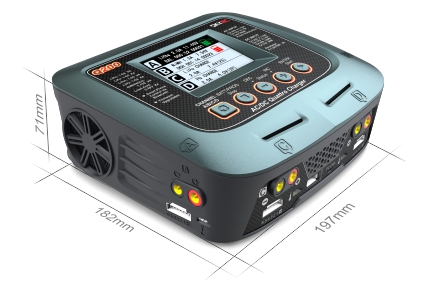

Size:197 x 182 x 71mm
Weight:1335g
