Product Information
.Advanced construction for today's demanding pilots
.PATENTED quick assembly canopy, wings and elevatorsystems EXCLUSIVE to Skywing
.Fast assembly time with pre-hinged and pre-sealedailerons and elevators
.Pre-installed engine cooling drainage baffle
.Factory assembled detailed canopy interior
.Incredible value NOW WITH MATCHING SPINNER, fueltank, fuel line, fuel and vent dot, wing and stab bags, as well as preinstalledhigh quality extensions.

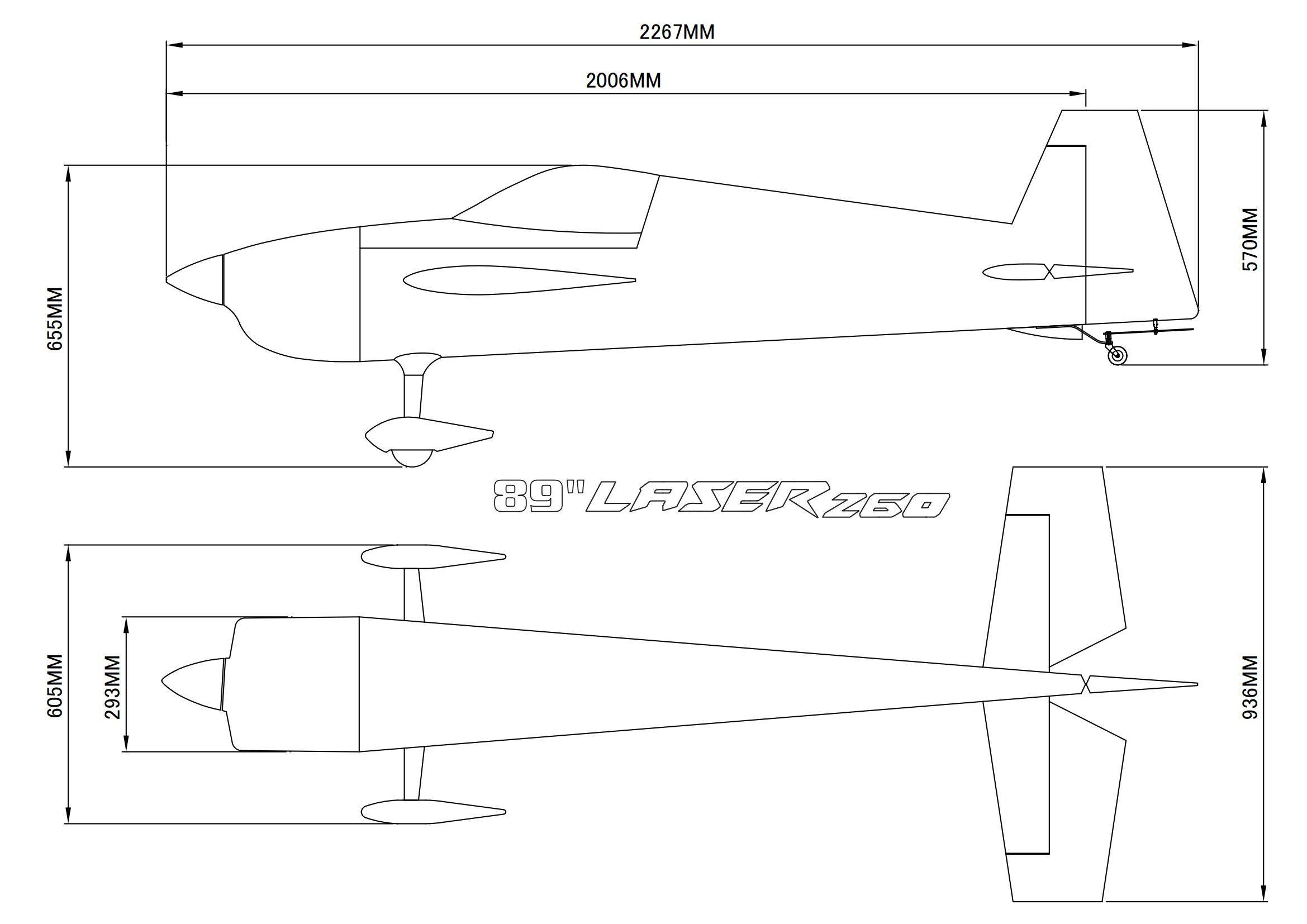

PRODUCT DATA
Wingspan
89 in./2260mm
Lenqth
89 in./2267mm
Wing Area
1345.4sq in/86.1dm²
Weight
20.28 lbs/9.1kg
Packaging Size/ Weight
188*72*38cm/17.5kg
REQUIRED HARDWARE:
1. 60-700cc Gas Engine*1
2. Carbon Propeller (24x8, 24x9, 24x10)*1
3. Digital High Speed Throttle Servo*1
4. Digital High Torque Metal Gear Servos (38kg or above)*5
5. Arms - tapped for 3mm hardware (aileronsx 2/1.5",elevator x 2/1.75",rudder x 1 /1.75")*5
6. Extensions - throttle(400MM)*1
7. Extensions - outer ailerons( 100mm/2pcs)*2
8. Dual Servo Harnesses - easy assembly at the field Receiver, Battery Packs, Switches, ETC.
----------------------------------------------------------------------------------------------------------------------------------------------------------------------
Test device（工厂测试设备）：
【engine 发动机】：gp76
【Servos 伺服】：CLI-380*5 Throttle油门（CLI130*1)
【Propellor 桨】：24*9
【power supply 电源】：2S-3300mah*1
【servo arm 摇臂】：Elevator 升降=1.75"*2 Aileron 副翼=1.5"*2 Rudder 方向=1.75*1
Laser260-C (white red )Reference cover color number（Oracover: white-10, red-23 , corsair blue-19 ,pearl charcoal-77)
Laser260-D (white yellow )Reference cover color number（Oracover: white-10, cub yellow-30 ,corsair blue-19 ,pearl charcoal-77)
