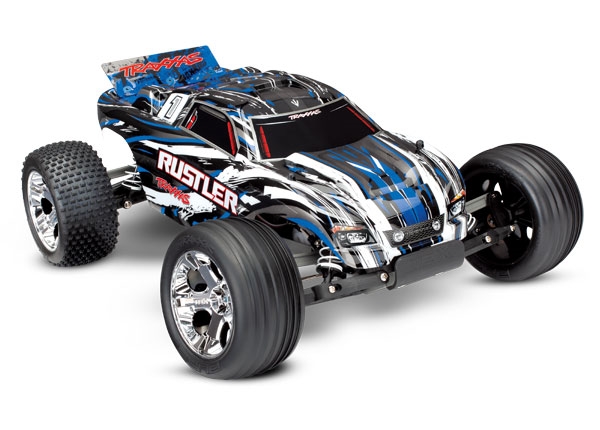

The Traxxas Rustler XL-5^®
The #1 Selling Stadium Truck!

New Orange and Green Colors Available!

The Traxxas Rustler has a winning formula for rugged, dependable fun that starts at just $169.99! The Rustler brings RC fun to a whole new level with faster speeds, innovative technology, and hobby-grade durability for years of fun. With a top speed of 35+mph*, Rustler rips off-road roost with its powerful Titan^® 12-turn modified 550 motor and XL-5 Electronic Speed Control. Traxxas' exclusive waterproof electronics allow Rustler to blast through puddles, mow through mud and shred snow for wild all-weather fun. Your RC adventures are limited only by your imagination. Step up to genuine Traxxas quality and performance and discover a whole new level of fun with the Traxxas Rustler!

­

Sealed Electronics Extend Your Driving Fun

The Rustler’s exclusive watertight, sealed electronics provide the freedom to drive through water, mud, snow, and other wet-running conditions. The XL-5 electronic speed control and the mini receiver are sealed against the elements. It opens up a whole new world of adventure and fun.

­

Modified Muscle

The Titan 12T 550 modified motor pumps out incredible power with virtually maintenance-free operation, and long-lasting performance. The Titan's integrated cooling fan pulls cool air through vent tunnels molded into the motor plate to keep temperatures down. A cooler running motor equates to faster speeds, longer runtime, and extended motor life. The XL-5 Electronic Speed Control offers high current handling, EZ-Set^® one-button setup, and smooth high-frequency control. Once reserved for high-end replacement ESCs, the XL-5 comes standard with three drive profiles, low voltage detection, thermal shutdown protection, gold-plated connectors, and incredibly low resistance. The patented Traxxas High-Current Connector opens the door for unrestricted current flow with today's high-power batteries.

Choose performance you want!

Select the right Traxxas iD battery to fit your needs from the options below

Runtime*	15+ Minutes	20+ Minutes	30+ Minutes
Battery	2926X (1) 3000mAh NiMh	2951X (1) 4200mAh NiMH	2843X (1) 5800mAh 2S LiPo
Skill Level	1	1	1

*Runtimes are estimates; actual runtime will vary due to operating conditions and driving style.

Choose your charging option

Traxxas iD Auto Battery Identification works exclusively with EZ Peak chargers

Charger	2969 2-amp NiMH charger	2970 EZ-Peak Plus	2971 EZ-Peak Live
Charging Amperage	2-amp	4-amp	12-amp

100% Assembled and Ready for your Battery and Charger

The Rustler comes out of the box Ready-To-Race^® with the TQ™ 2.4GHz 2-channel radio system, waterproof XL-5 Electronic Speed Control and Titan 12T motor. Rustler is fun to drive and easy to own, with legendary durability, low-maintenance design, and unmatched parts support from thousands of hobby stores worldwide. With over 30 years in the hobby industry, Traxxas goes the extra mile to ensure that your RC experience is easy and fun. A staff of skilled representatives is on-hand to answer your questions via phone, website, or email. On-road or off-road, at the track or in the backyard, the Rustler is the ultimate stadium truck.

­

MODEL 37054-4: Fully assembled, waterproof, Ready-To-Race^®, with TQ™ 2.4GHz radio system,
XL-5 Electronic Speed Control, and ProGraphix^® painted body

with internal cooling fan - an industry first for this class of truck! The Titan's oversized armature (30% larger compared to 540-sized armatures) features 12 turns of pure copper wire for big torque and increased power-handling capabilities. The integrated cooling fan lowers running temperatures for more fun behind the wheel. The Titan 12T requires very little maintenance and provides consistent torque and high speeds run-after-run, without fading. Beyond the specs, the Titan 12T is made for dirt-roosting torque, lightning-quick acceleration, big-air jumps, and just about any other 4-wheel fun that demands real horsepower.

XL-5 Waterproof Electronic Speed Control
Designed and engineered by Traxxas, the XL-5 Electronic Speed Control handles the elements while smoothly supplying power to the motor. This high-performance ESC packs impressive features that are normally only found on more expensive high-end replacement units. The XL-5 features a completely waterproof design, three throttle profiles, low voltage detection, Thermal Shutdown Protection, 4-7 cell NiMH and 2-cell LiPo compatibility, and built-in BEC. High frequency operation combined with ultra-low resistance make the XL-5 an efficient and ultra-smooth fully proportional speed control. The exclusive and patented Training Mode™ reduces the overall power output of the XL-5 by 50%, making it easier for young or new drivers to develop their control skills before unleashing full-power.

• Innovative watersealed design
• Three drive profiles
  • Sport Mode - forward / brake / reverse
  • Race Mode - forward / brake
  • Training Mode™ - 50% forward / brake / 50% reverse (patented)
• 12-turn motor limit for 550 size motors
• 15-turn motor limit for 540 size motors
• Integrated on/off switch
• Traxxas EZ-Set^® one-button setup
• LiPo and NiMH compatible with two-stage low-voltage detection
• High-efficiency MOSFET transistors
• Click here for more info.

Precision 2.4GHz Control
Switch on the power and drive! That's all there is to it with the TQ™ 2.4GHz radio system. There are no frequencies to manage, so the focus is on having fun. Race multiple vehicles side by side without interference. The TQ's advanced programming provides long-range control with smooth, glitch-free performance. The TQ's ergonomic design is comfortable for all day driving with an internal antenna that is impervious to damage.

Waterproof Receiver Box
Rustler's innovative waterproof receiver box allows easy access to the receiver for maintenance. The unique patented design holds a 3-channel micro receiver that saves weight and provides reliable, long-range RC performance.

3-channel Micro Receiver with Fail-Safe Security
The TQ 2.4GHz micro receiver fits easily into almost any vehicle, and features dual channel-1 steering outputs. The integrated LINK button makes it fast and easy to bind the receiver, and the two-color LED indicates power-on and bind status for fool-proof control and convenience. In the event of signal loss due to an accidental transmitter switch-off or depleted batteries, the receiver will automatically return the throttle to neutral and hold the last commanded steering position. The Fail Safe programming is conveniently built-in and does not need to be set or activated.

High-Torque Waterproof Steering Servo
A race truck needs a powerful steering servo for responsive performance, and Traxxas delivers with the #2056 high-torque servo. This waterproof steering servo uses O-ring seals to keep the fun going when things get wet. Waterproof for all-weather action, the #2056 provides 80 oz-in of steering muscle. That's twice the power of typical "standard" servos.

Securely Mounted Electronics
The ESC and watertight receiver box mount directly to the chassis for ultimate mounting security. There's no servo tape to loosen over time with dirt, heat, and collisions.

Torque-Control™ Slipper Clutch
The Torque-Control slipper clutch uses special semi-metallic friction pads and finned aluminum alloy pressure plates to dissipate heat and provide consistent traction control. The friction material remains stable across a wide temperature range to provide smooth, linear engagement you can count on, run after run. Spur gears remove and replace easily without altering the slipper adjustment.

Alias™ Tires and All-Star™ Wheels
The Rustler rides on impressive 2.8" All-Star™ mirror-chrome wheels. Alias™ step-pin rear tires and ribbed front tires keep the Rustler firmly planted on extreme off-road terrain.

The All-Star wheels feature a lightweight horizontal bead that holds the tire to the rim even under extreme rpm. Performance-designed foam inserts are standard and all tires come pre-glued from the factory to get you rolling right out of the box.

Included Optional Pinion Gear
The Rustler reaches its blistering 35+mph top speed on-road using the optional 28-tooth pinion gear (included) and a 7-cell 8.4V battery pack (sold separately). Out of the box, the installed 16-tooth pinion gear is just right for all-around, on or off-road action.

ProGraphix^® Body
The Rustler’s fully trimmed and painted ProGraphix bodies turn heads everywhere they go with its bold paint designs. Decals come pre-applied to save you time and get you driving just minutes out of the box. Traxxas' ProGraphix bodies are the hottest looking bodies around and are only available on Traxxas Ready-to-Race^® models.

Oil-Filled Ultra Shocks™
Rustler's oil-filled Ultra Shocks utilize X-ring technology for a perfect seal and silky-smooth performance. They are easy to customize with a wide range of high-performance oils, springs, and pistons available. Features include pressure bladders for air/oil separation and spring clips to change precisely the ride height and spring pre-load tension. If their performance ever fades, refresh them in minutes with our inexpensive rebuild kits.

Powder Coated White Springs
White springs are race-tuned for more responsive handling and the long-lasting, white powder coated finish sets Rustler apart from the pack.

Motor Mount with Cooling Channels
The sealed gearbox protects the transmission components from dirt and rocks. The molded motor plate includes finned cooling channels where the motor mounts to the motor plate. The cooling channels work in conjunction with the internal Titan 12T motor fan to pull air through the motor for superior cooling.

Brushless Ready Magnum 272™ Transmission
The Rustler's Magnum 272 transmission features metal gears riding on ultra-smooth sealed ball bearings. Combined with the smooth 48-pitch gears, power transfers quietly to the durable telescoping U-joint driveshafts. The sealed gearbox protects the transmission components from dirt and rocks. Best of all, the Magnum 272 is built Traxxas Tough™ to handle massive brushless power without the need for costly upgrades

Brushless Ready Planetary Gear Differential
The Traxxas planetary gear differential uses hardened steel internal gears for maximum strength during rigorous off-road bashing. This type of differential requires virtually no maintenance and its efficient design puts maximum tire-shredding power to the wheels.

Bellcrank Steering
A 35+mph stadium truck needs a sophisticated steering design to provide razor-sharp handling and accurate steering response. The Rustler's high-performance bellcrank steering system minimizes bump steer to increase cornering stability.

Telescoping Driveshafts
Slider driveshafts are extremely durable and allow greater articulation for increased suspension travel.

Unmatched Customer Support and Parts Availability
Unparalleled Traxxas support comes standard with every Traxxas model. Traxxas offers the most extensive product support base in the industry and provides unrivaled parts availability. Rustler parts and service are available from a network of nearly 2000 hobby dealers worldwide. Nobody works harder than Traxxas to be accessible to you. Our friendly toll-free phone support is available weekdays from 8:30am to 9pm Central Time; just call 1-888-TRAXXAS. We also offer email support anytime at [email protected]. Traxxas models are about experiencing total performance and satisfaction, not just in the products, but also with the company that stands behind them.

Manual
Rustler (37054-4) Manual - English

EXPLODED VIEWS
Rustler (37054-4) Chassis Assembly Exploded View
Rustler (37054-4) Front Assembly Exploded View
Rustler (37054-4) Rear Assembly Exploded View
Rustler (37054-4) Transmission Assembly Exploded View
