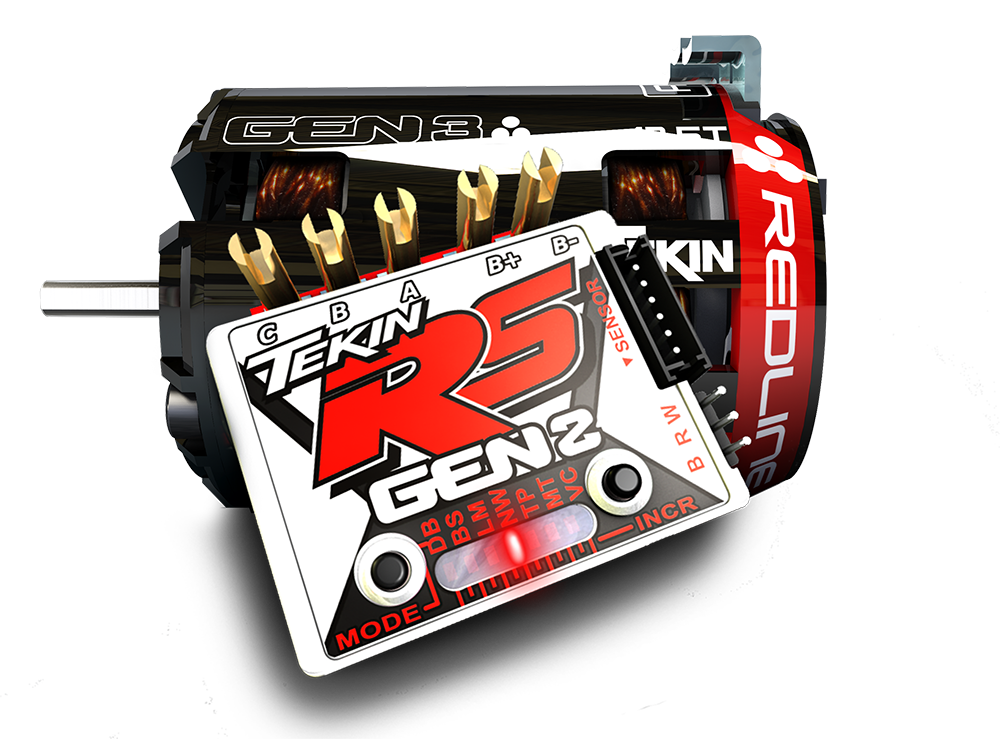

Tekin’s third generation motors are re-engineered from the ground up resulting in a smaller, lighter and faster sensored motor. On Road or Off, the new GEN3 handles the task in stride, delivering the smooth power across all RPMs that you’ve come to expect from a Tekin motor. Much more than a re-hash and new look, the GEN3 Redline Sensored Motor is now ready for any situation and able to create the speed you need to win.

The GEN3 21.5T, 17.5T and 13.5T are available in an RPM version as well as the standard versions. Designed for applications where higher RPM is more beneficial than torque, these motors are perfect for 1/12 and touring car racing classes.

The GEN3 modified group of motors are custom tuned with rotor sizes to give you the performance needed for your application. The 21.5T down to 8.5T group come standard with 12.5mm performance rotors and the 7.5T to 2.5T group are equipped with a 13mm rotor for that extra torque needed in modified racing.

_____________________________________________________________________________________________________________

Input Voltage: 2S - All

3S - 10.5 and up

Weight: 158g / 5.6oz

Shaft Dimensions: 3.2mm (1/8") x 15.3mm

Motor Diameter: 35.85mm / 1.40"

Motor Length: 48.5mm / 1.909"

Bearing Dimensions: Front: 4x13x5mm / Rear: 1/8x3/8x5/32"

Rotor Size: 12.3mm - 25.5T

12.5mm - 21.5T rpm* / 17.5T rpm / 13.5T rpm /

21.5T / 17.5T / 13.5T / 10.5T / 9.5T / 8.5T

13mm - 7.5T / 6.5T / 5.5T / 4.5T / 4T / 3.5T / 2.5T

Rebuildable: Yes

_______________________________________________________________________________________________________________

CNC Machined T 6061 Billet Aluminum Heat Sink Can

Neodymium Sintered Magnet

Precision Engineered for Maximum Energy Conversion

High Purity Copper Windings Maximize Conductivity

Low Resistance, High Power Solder Tabs

Dual-Plug Sensor Wire Harness for all Sensored and Sensorless systems

Anodized End-bell plates maximize corrosion and wear resistance

High RPM precision bearings

Rebuild-able Design

Solder-less Sensor PCB replacement

Adjustable Timing

Standard and RPM versions
