UP10 AC 100W / DC 2X100W Dual Port Multi-Chemistry AC/DC Smart Charger
UP10 AC 100W / DC 2X100W Dual Port Multi-Chemistry AC/DC Smart Charger

Alternative Views:


List Price: CAD$199.98
Price: CAD$189.98
Savings: CAD$10.00

Stock Status:1

Item Number: UPTUP10
Qty:

Description

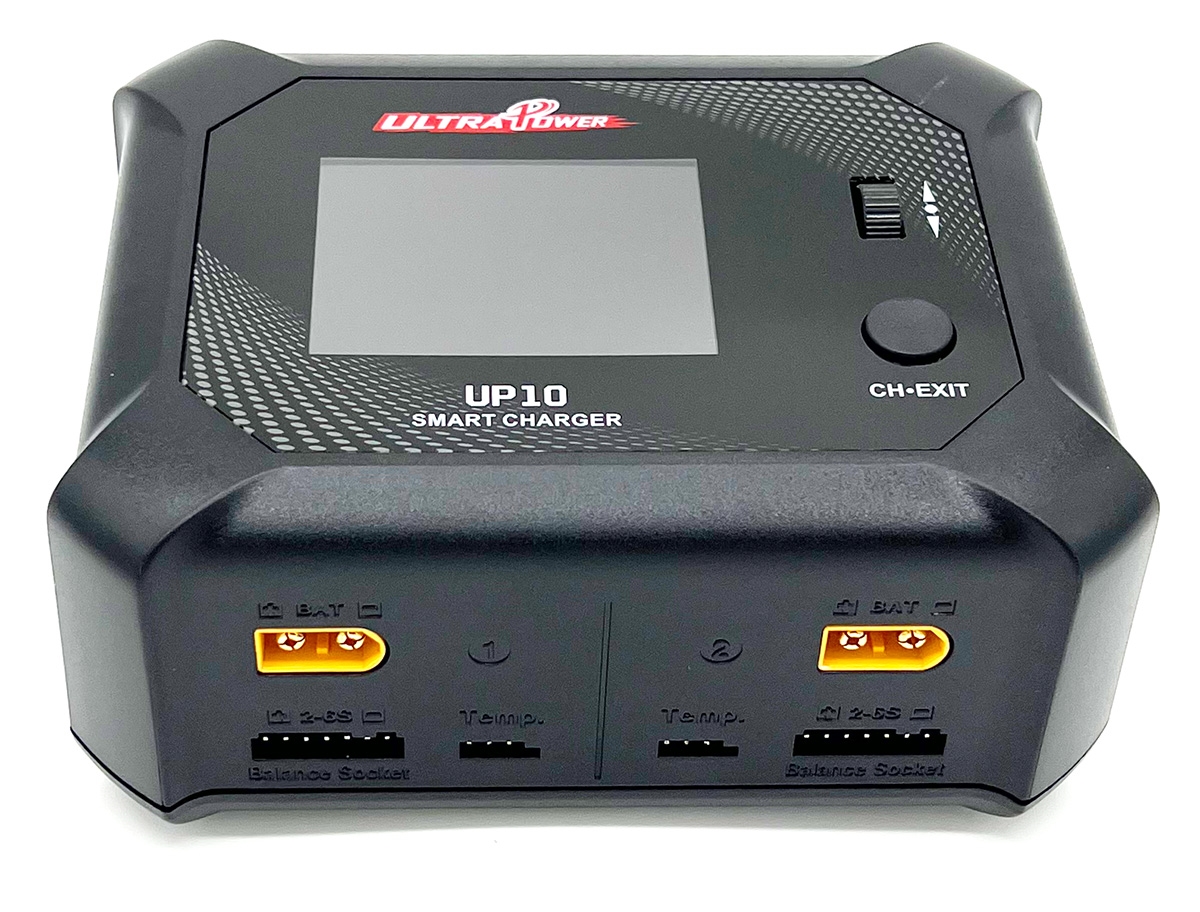

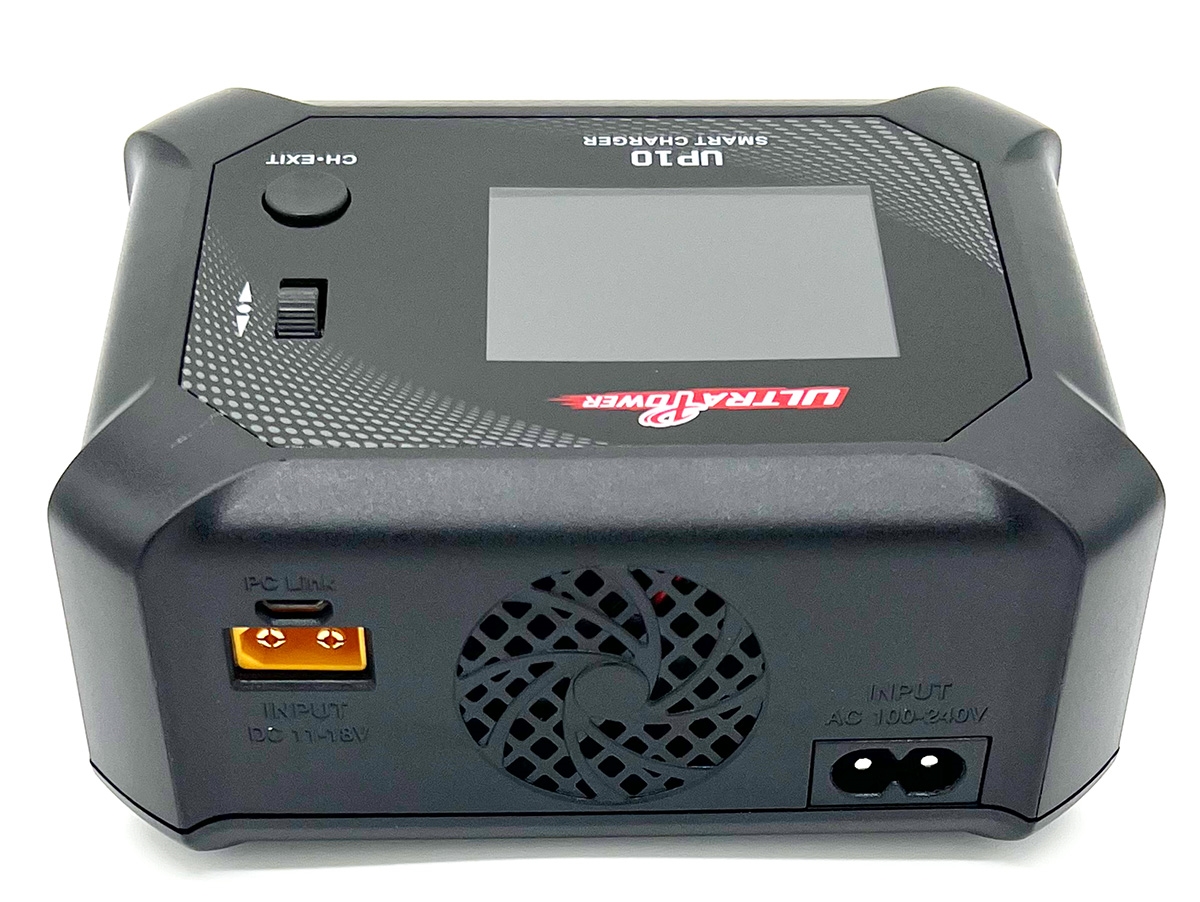

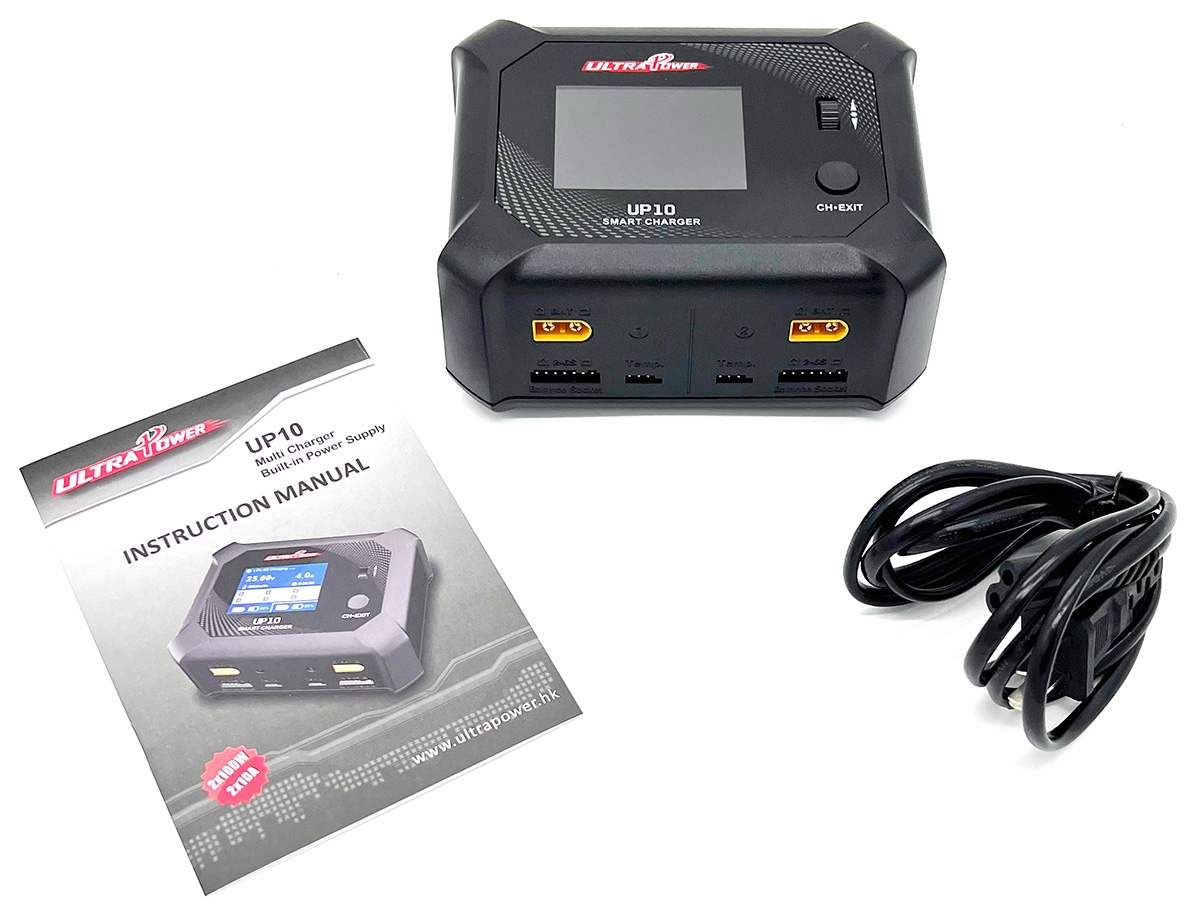

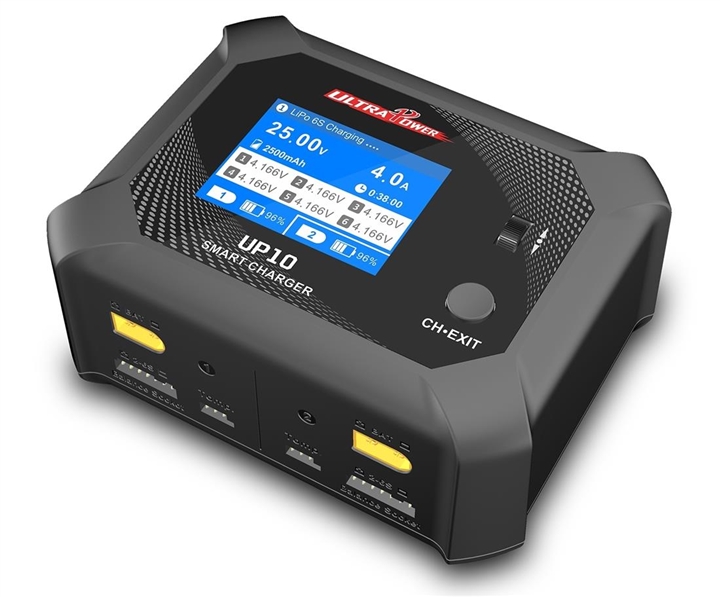

UP10 AC 100W / DC 2X100W Dual Port Multi-Chemistry AC/DC Smart Charger

The UP10 100W/200W AC/DC Dual Port Multi-Chemistry Smart Charger is a fantastic choice for hobby enthusiasts. The UP10 can charge up to 100 watts total on AC power (CH1+CH2 =100W), and up to 200 watts total when using an external DC power source (sold separately). Power distribution can be biased between channels if needed for faster charge times of higher capacity or higher voltage packs. Each charge channel supplies up to a maximum of 10 Amps to charge your batteries quickly, and the integrated balance port allows you to charge modern battery chemistries requiring cell balancing safely. The charger runs on a 32-bit ARM chip for intelligent protection and safe charging. Safety features include over-current protection, over-voltage protection, short-circuit protection, thermal protection, reverse polarity protection, and flame-retardant materials. The large 2.4" IPS color screen provides loads of information about your battery's condition at a glance, and is visible even in outdoor conditions. The menu system is easily navigated with the scroll/toggle wheel, and ch/exit button. This is a great charger for beginners and advanced hobbyists alike, get yours today!

Specifications:

  • Input Voltage: AC 100 - 240V, DC 11.0 - 18.0V
  • Output Voltage: 0.1 - 26.1V
  • Charging Current: 0.1 - 10.0A x2
  • Discharge Current: CH1: 0.1 - 10.0A (0.1 - 15.0A External Charge Mode); CH2: 0.1 - 2.0A
  • Charge Power: DC Input: 2 x 200W; AC Input: MAX 100W (CH1+CH2=100W); Supports power distribution
  • Discharge Power: 2x10W
  • Balance Current: MAX 500mA/cell via integrated balance port
  • Support Battery Types: LiPo / LiHV / LiFe / Li-Ion (1-6S); NiMH / NiCd (1-16S); Lead Acid (2-24V)
  • LCD Screen Type: 2.4" 320x240 IPS LCD
  • Dimensions: 135x105x58mm
  • Weight: 550g
